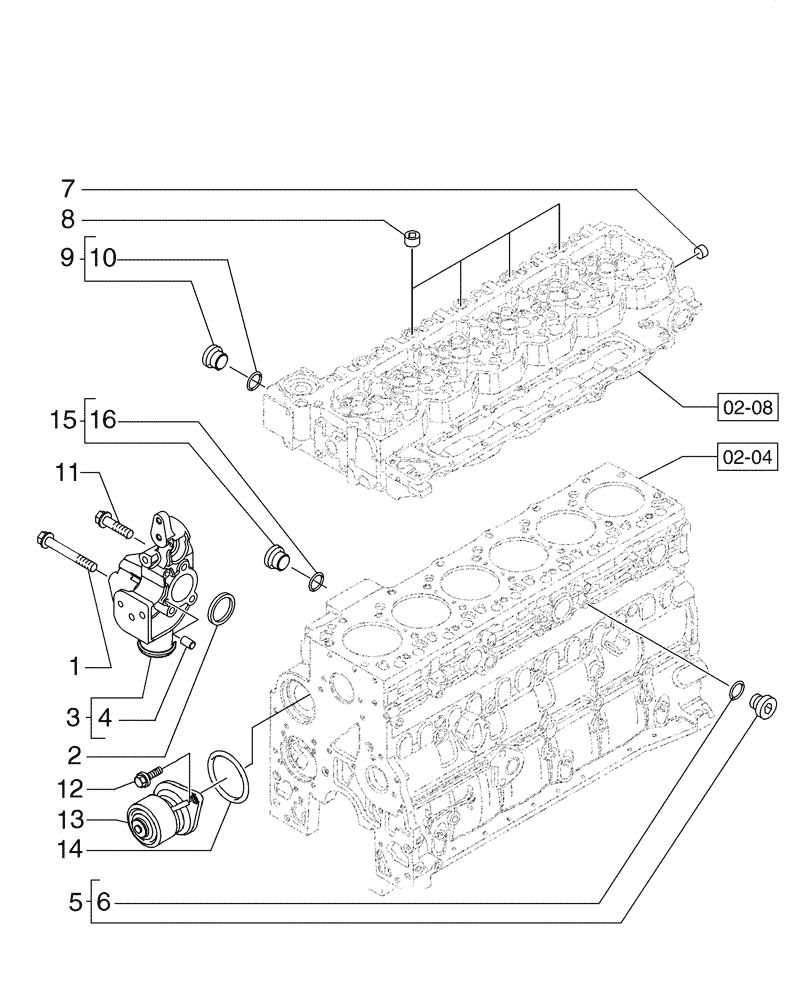

Запчасти Case 865B AWD (02-45[01]) - ENGINE - COOLING SYSTEM (02) - ENGINE

1

2852286

BOLT,Flng, M10 x 1.5 x 130mm

3шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.

3

2854938

FITTING

Support, Water Inlet Connector, Incl. Ref 4

1шт.

4

4895576

DOWEL

2шт.

5

4895623

HEX SOCKET PLUG,M16 x 1.5

1шт.

6

6903356

O-RING

1шт.

7

4893036

PIPE PLUG,3/4"-14 NPTF

Alternate part to 2854866

1шт.

7

2854866

HEX SOCKET PLUG,3/4"-14 NPTF

Alternate part to 4893036

1шт.

8

4895078

PIPE PLUG,1/2"-14

4шт.

9

4895080

HEX SOCKET PLUG,M22 x 1.5

Incl. 15

1шт.

10

4895625

O-RING,13.3mm ID x 2.2mm Width

1шт.

11

4895292

FLANGE BOLT,Hex, M10 x 1.5 x 70mm

1шт.

11

4895292

FLANGE BOLT,Hex, M10 x 1.5 x 70mm

1шт.

12

4899079

SCREW,Hex Flg, M8 x 1.25 x 25

2шт.

12

4899079

SCREW,Hex Flg, M8 x 1.25 x 25

2шт.

13

4891252

WATER PUMP

1шт.

13

2852114R

REMAN-WATER PUMP

1шт.

13

2852114C

CORE-WATER PUMP

Return Number

1шт.

14

2852047

SEALING RING,Square, 5.16mm Thk x 88.27mm ID

SEALRING

1шт.

14

2852047

SEALING RING,Square, 5.16mm Thk x 88.27mm ID

SEALRING

1шт.

15

4895392

HEX SOCKET PLUG,M18 x 1.5

1шт.

15

4895392

HEX SOCKET PLUG,M18 x 1.5

1шт.

16

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

16

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.
