(02-27[01]) - GEAR COVER - REAR HOUSING

Запчасти Case 865B AWD (02-27[01]) - GEAR COVER - REAR HOUSING (02) - ENGINE

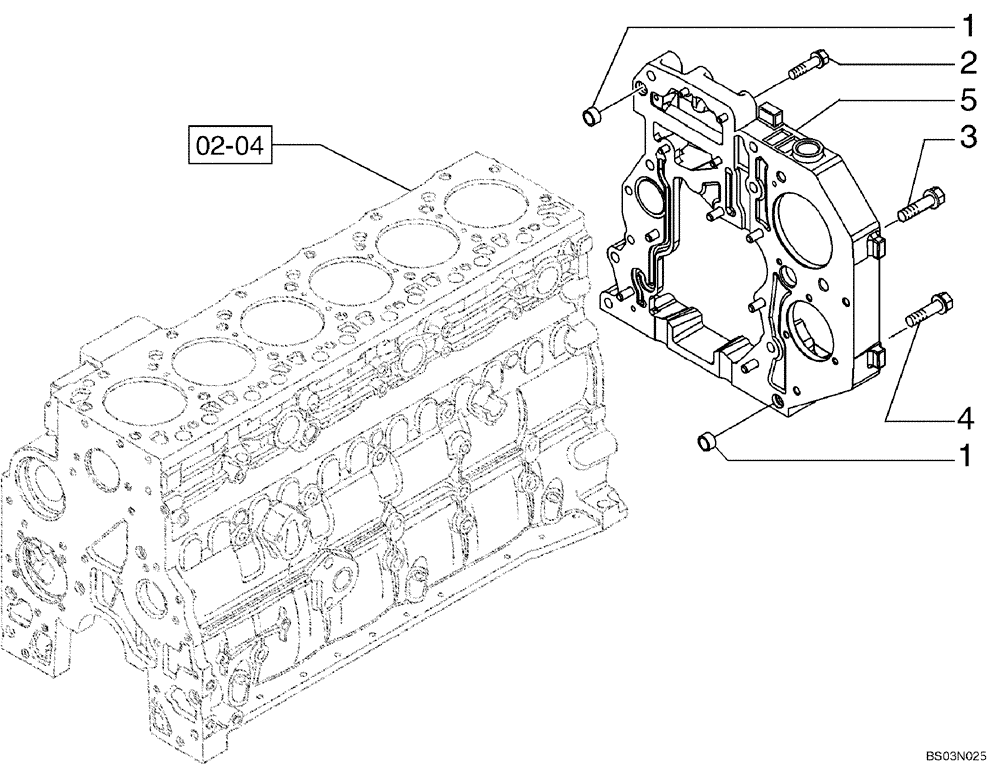

Схема запчастей Case 865B AWD - (02-27[01]) - GEAR COVER - REAR HOUSING (02) - ENGINE
1
02-04
2
5
3
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

4899026

DOWEL,M18 x 10

Ring

2шт.

2

4899078

SCREW,Hex Flg, M8 x 1.25 x 45

4шт.

3

4899093

BOLT,Hex Flange, M10 x 30.00mm, Cl 10.9, PHC

2шт.

3

4899073

SCREW,Hex Flg, M12 x 1.75 x 30

1шт.

4

4896939

SCREW,M10 x 1.5 x 50mm

Flange, M10 x 50

3шт.

5

2859269

HOUSING

Cover

1шт.
