(09-55[01]) - SEAT SUSPENSION, PNEUMATIC

Запчасти Case 865B AWD (09-55[01]) - SEAT SUSPENSION, PNEUMATIC (09) - CHASSIS/ATTACHMENTS

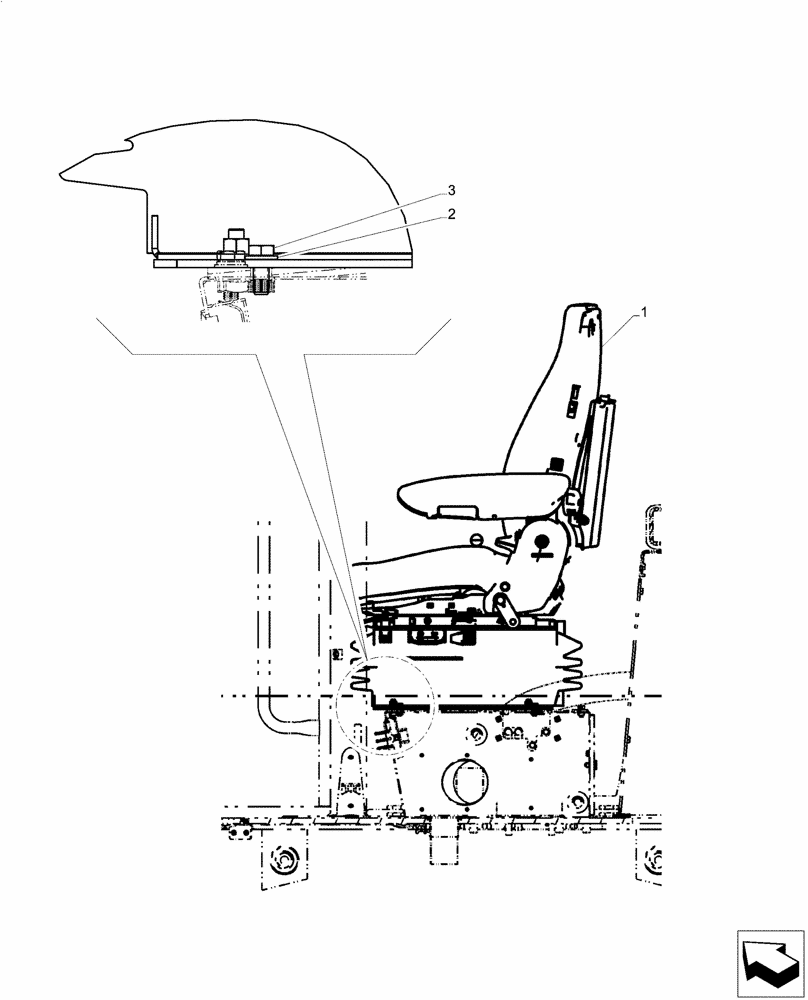

Схема запчастей Case 865B AWD - (09-55[01]) - SEAT SUSPENSION, PNEUMATIC (09) - CHASSIS/ATTACHMENTS
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47702945

DRIVER SEAT

Cloth Pneumatic

1шт.

2

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

4шт.

3

16043431

SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

4

75227701

COVER

Not Shown

1шт.
