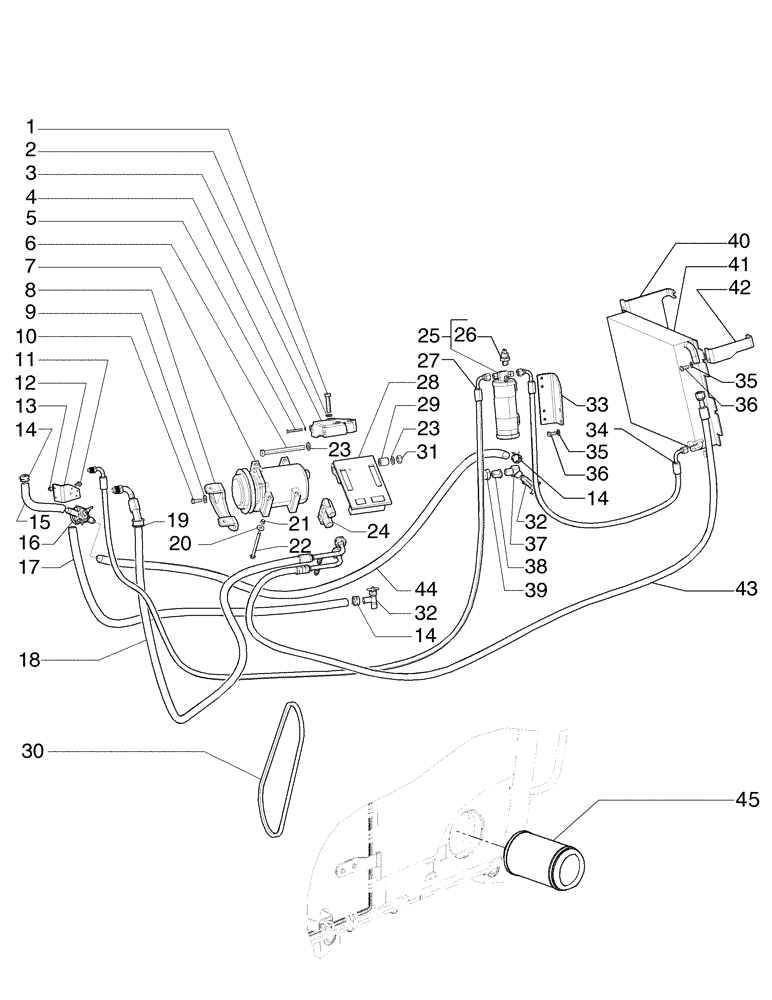

Запчасти Case 865B AWD (09-51[01]) - CAB, AIR CONDITIONER SYSTEM (09) - CHASSIS/ATTACHMENTS

1

11107231

SCREW,Hex, M10 x 50mm, Cl 10.9

3шт.

2

10516871

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

3шт.

3

87652932

SUPPORT

1шт.

4

8403761

WASHER

1шт.

5

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

1шт.

6

395277

BOLT,Hex, M12 x 1.75 x 130mm, Cl 8.8

1шт.

7

84304794

AIRCOND. COMPRESSOR

1шт.

7

84304794R

REMAN-A/C COMPRESSOR

865B AWD, 885B AWD, Both MOTOR GRADER TIER 3 (NEW CAB) (10/11-)

1шт.

7

84304794C

CORE-A/C COMPRESSOR

Return Number

1шт.

8

84304784

TENSIONER

1шт.

9

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

1шт.

10

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

11

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

2шт.

12

84323802

SUPPORT

1шт.

13

393392

LOCK NUT,Prev Torque, M6 x 1, Cl 8

2шт.

14

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

6шт.

15

75320965

HEATER HOSE,16.00 mm ID x 410.00 mm

1шт.

15

84374771

HEATER HOSE

1шт.

16

84327179

HEATER VALVE

1шт.

17

R55242

HEATER HOSE,15.50 mm ID x 2550.00 mm

1шт.

18

84304777

HOSE ASSY.

1шт.

18

47710307

HOSE

1шт.

19

75321576

INSULATOR

2шт.

20

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

4шт.

21

4895227

GUIDE RING,11.15mm OD, 8.5mm ID, 9mm L

2шт.

22

814-8110

BOLT,Hex, M8 x 1.25 x 110mm, Cl 8.8

2шт.

22

412215

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

2шт.

23

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

24

87363102

HYD CONNECTOR

1шт.

25

75325647

RESERVOIR

1шт.

25

47710323

RESERVOIR

1шт.

26

75313577

SENSOR

1шт.

26

47710360

PRESSURE SWITCH

1шт.

27

84304776

HOSE ASSY.

1шт.

28

84304783

SUPPORT

1шт.

29

6901440

SPACER

1шт.

30

84304790

BELT

1шт.

31

9706685

NUT,M12 x 1.75, Cl 8

1шт.

32

301803R1

SHUT-OFF VALVE

2шт.

33

75325588

BRACKET

1шт.

34

87756511

FLEXIBLE HOSE

1шт.

34

47666211

HOSE

1шт.

35

10519621

WASHER,8.15mm ID x 17mm OD x 2mm Thk

6шт.

36

16043431

SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

6шт.

37

70910149

ELBOW

1шт.

38

70901835

BUSHING

1шт.

39

70901828

BUSHING

1шт.

40

84286140

SUPPORT

1шт.

41

87642958

CONDENSER

1шт.

42

84283580

SUPPORT

2шт.

43

84304778

HOSE ASSY.

1шт.

43

47710304

HOSE

1шт.

44

87574040

HEATER HOSE,16.00 mm ID x 2400.00 mm

1шт.

44

47710281

HOSE

1шт.

45

84350712

CAB FILTER

1шт.
