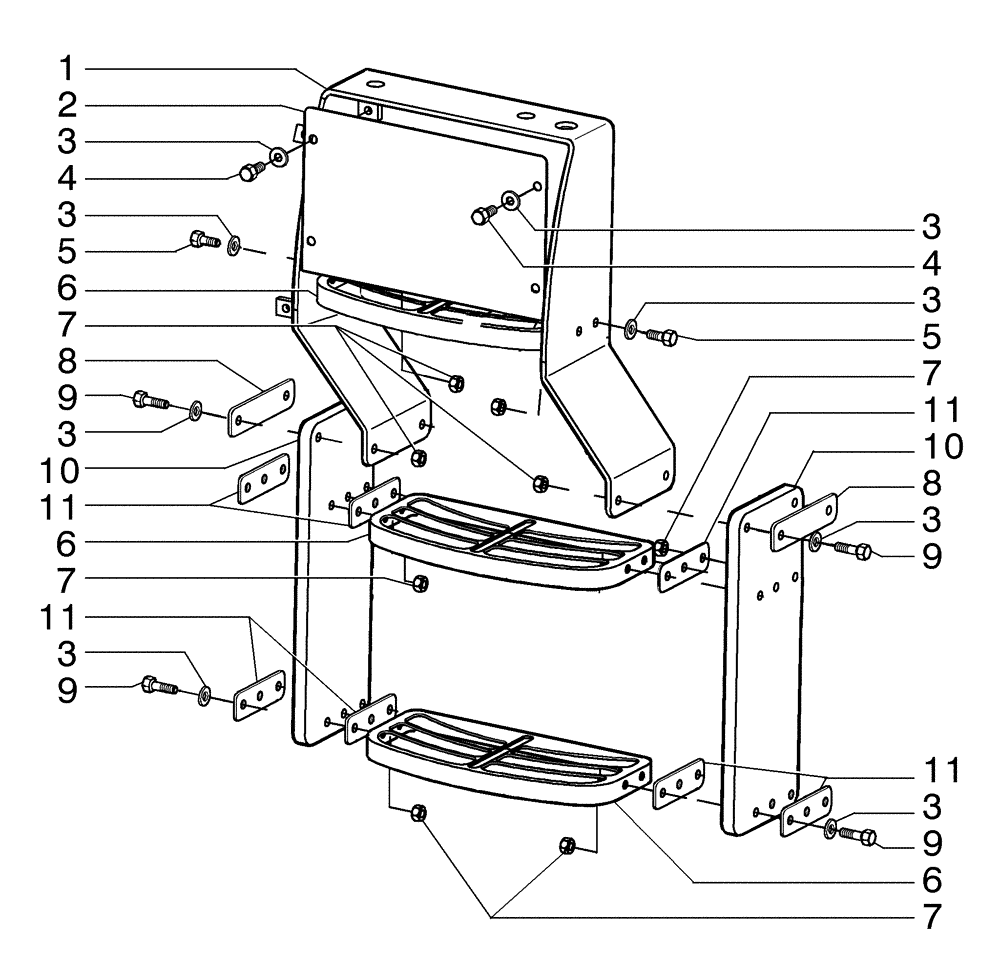

Запчасти Case 865B AWD (09-08[01]) - RH LADDER ASSY (09) - CHASSIS/ATTACHMENTS

1

84155977

LADDER

1шт.

2

84155959

MOUNTING PLATE

1шт.

3

12646821

WASHER,10.2mm ID x 25mm OD x 2mm Thk

24шт.

4

10979321

BOLT,Hex, M10 x 14mm, Cl 8.8, Full Thd

4шт.

5

11106121

BOLT,Hex, M10 x 1.5 x 22mm, Cl 8.8, Full Thd

4шт.

6

87434472

STEP

3шт.

7

11701721

NUT,M10, Cl 10

20шт.

8

84153143

MOUNTING PLATE

2шт.

9

11106631

SCREW,Hex, M10 x 35mm, Cl 10.9, Full Thd

16шт.

10

84152365

RUBBER BAND

2шт.

11

84153139

MOUNTING PLATE

8шт.
