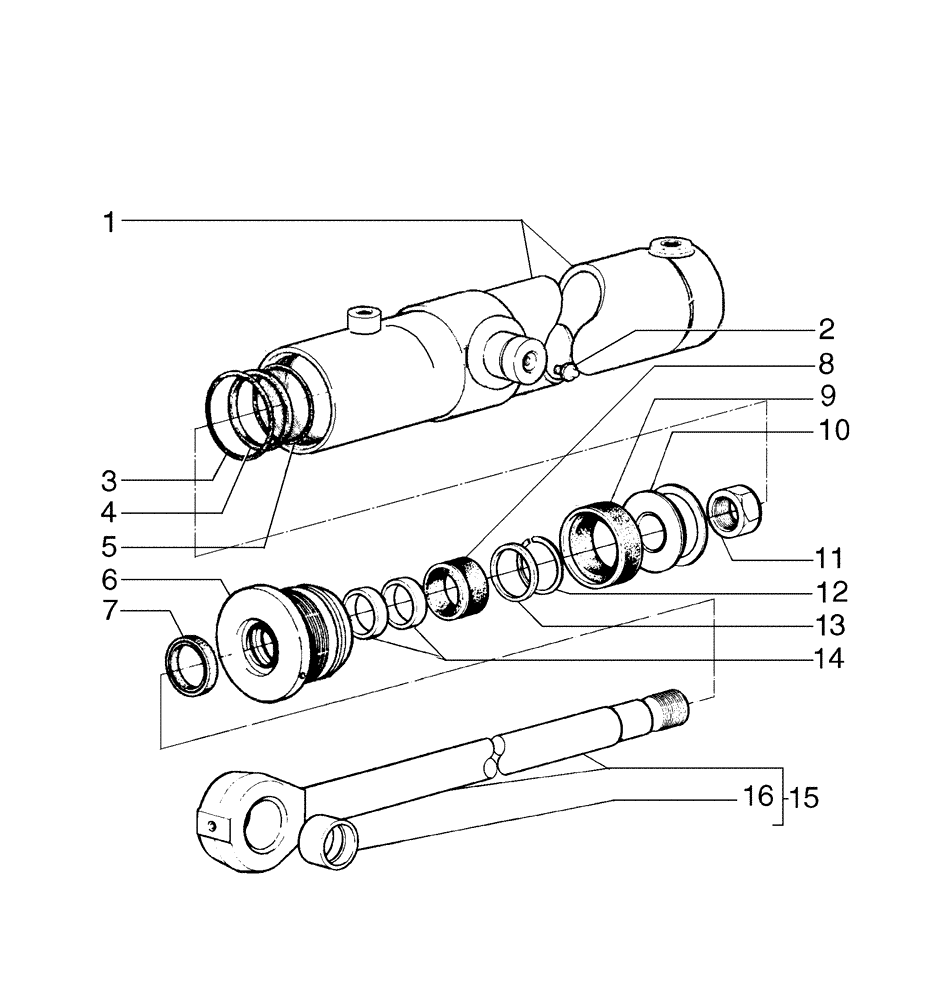

Запчасти Case 865B AWD (08-77[01]) - RIPPER CYLINDER (08) - HYDRAULICS

84187083

HYDRAULIC CYLINDER,Double Acting, 60mm Rod, 520mm Stroke

1шт.

84187083R

REMAN-HYD CYLINDER

Reman For New P/N 84187083

1шт.

84187083C

CORE-HYD CYLINDER

Return Part Number

1шт.

1

84187087

BARREL

1шт.

2

13407211

LUBE NIPPLE,M10 x 1

1шт.

3

238-5246

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

2шт.

4

446178A1

SEALING RING,110.41mm ID x 116.35mm OD x 1.09mm Thk

1шт.

5

238-5245

O-RING,0.139" Thk x 4.359" ID, -245, Cl 5, 75 Duro

1шт.

6

84187085

GLAND

1шт.

7

8288748

RING,59.96mm ID x 68.6mm OD x 9mm Thk

1шт.

8

8284381

SEAL,60.4mm ID x 75mm OD x 25mm Thk

SEALRING

1шт.

9

8291505

SEAL,85mm ID x 103.1mm OD x 22.4mm Thk

1шт.

10

8290223

PISTON

1шт.

11

8293297

NUT

1шт.

12

11061676

SNAP RING,M75, Int

1шт.

13

8288726

SHIM,60.8mm ID x 74.8mm OD x 1.5mm Thk

1шт.

14

8288749

GUIDE RING,59.96mm ID x 66mm OD x 12.8mm Thk

2шт.

15

75251727

ROD

1шт.

16

8286948

BUSHING,60.2mm ID x 72mm OD x 65mm L

1шт.
