Запчасти Case 865B AWD (02-14[01]) - CONNECTING ROD AND BEARING (02) - ENGINE

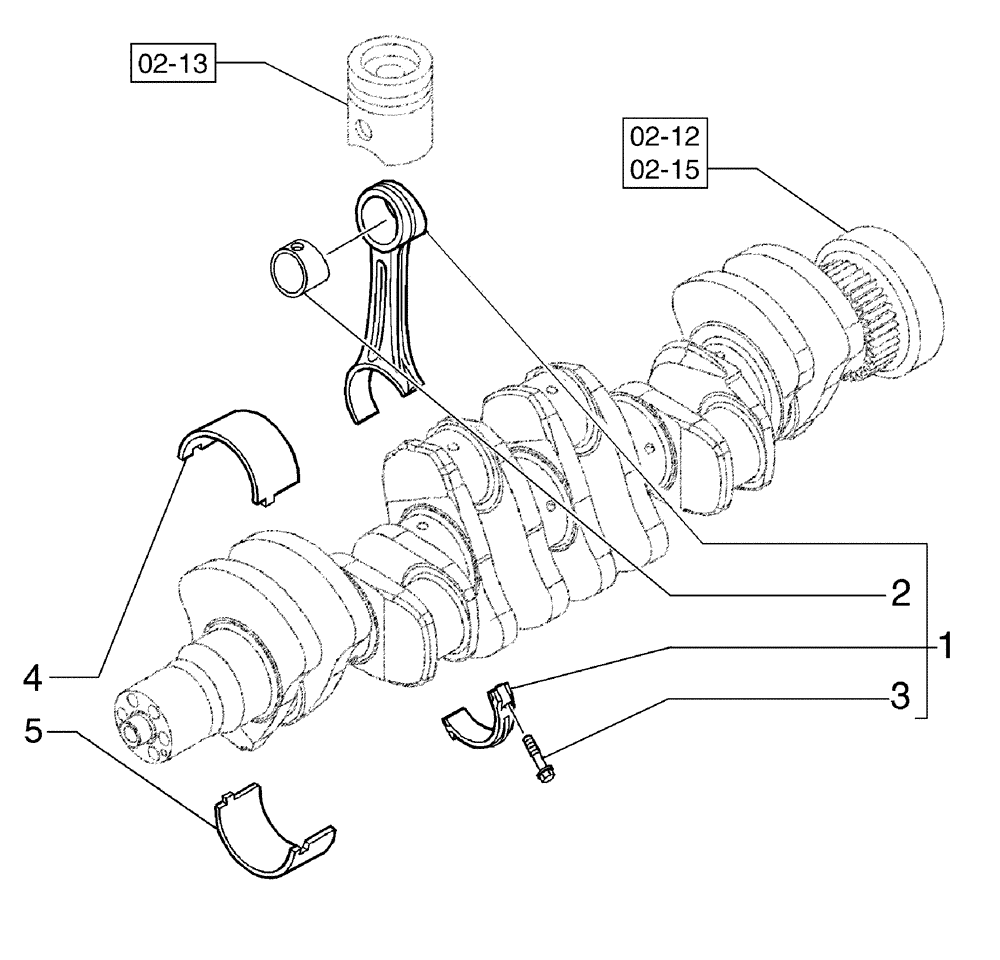

Схема запчастей Case 865B AWD - (02-14[01]) - CONNECTING ROD AND BEARING (02) - ENGINE
3
2
02-13
02-12
02-15
4
5
1

Артикул

Название

Примечание

Количество

1

2831298

CONNECTING ROD

6шт.

2831298R

REMAN-CONNECTING ROD

865B AWD , 885B AWD BOTH TIER 3 all are in ( 10/11 - )

6шт.

2831298C

CORE-ROD CONNECTING

Return Number

1шт.

1

2831298R

REMAN-CONNECTING ROD

865B AWD (10/11), 885B (12/10) All Tier 3 w/New Cab

6шт.

2831298C

CORE-ROD CONNECTING

Return Number

1шт.

2

4892708

BUSHING,38.02mm ID x 41.01mm OD x 33.4mm L

6шт.

3

2831297

FLANGE BOLT,Hex, M10 x 1.25 x 52mm, Cl 10.9

12шт.

4

4892715

BEARING LINER

BEARING, CON. ROD STD

6шт.

4

2831468

BEARING,CON.ROD

BEARING, CON. ROD 0.25

6шт.

4

2831469

BEARING,CON.ROD

BEARING, CON. ROD 0.50

6шт.

5

2856309

CRANKSHAFT BEARING

STD

6шт.

5

2858008

BEARING,CON.ROD

BEARING, CON. ROD 0.25

6шт.

5

2858009

BEARING,CON.ROD

BEARING, CON. ROD 0.50

6шт.

Выбрано товаров: 13
