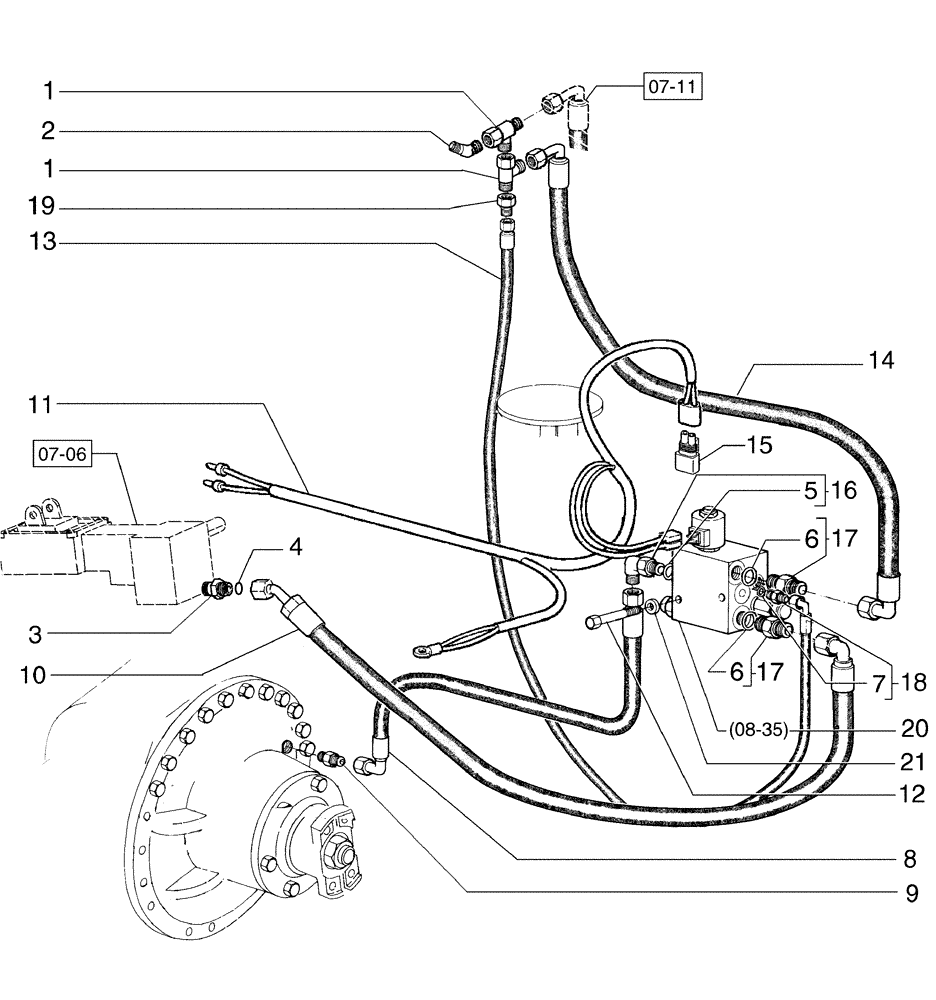

Запчасти Case 865B AWD (08-25[01]) - DIFERENTIAL HYDRAULIC BLOCK (08) - HYDRAULICS

1

70921298

3 WAY CONNECTION

2шт.

2

70922507

ELBOW

1шт.

3

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

4

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

5

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

70921206

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

70921883

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

1шт.

8

75324751

HOSE,12.7mm ID x 1800mm L, SAE 100R2

1шт.

9

79104773

HYD CONNECTOR

1шт.

10

87752987

HOSE,12.7mm ID x 2850mm L, SAE 100R3

1шт.

11

84271100

HARNESS

1шт.

12

16045021

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

2шт.

13

84124714

HOSE ASSY.

1шт.

14

75324755

HOSE,12.7mm ID x 1680mm L, SAE 100R2

1шт.

15

75322270

ELEC CONNECTOR

1шт.

16

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

1шт.

17

70923717

HYD CONNECTOR

2шт.

18

70923163

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

1шт.

19

70923102

REDUCER

1шт.

20

87471441

VALVE

1шт.

Page 08-35

1шт.

21

10519621

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.
