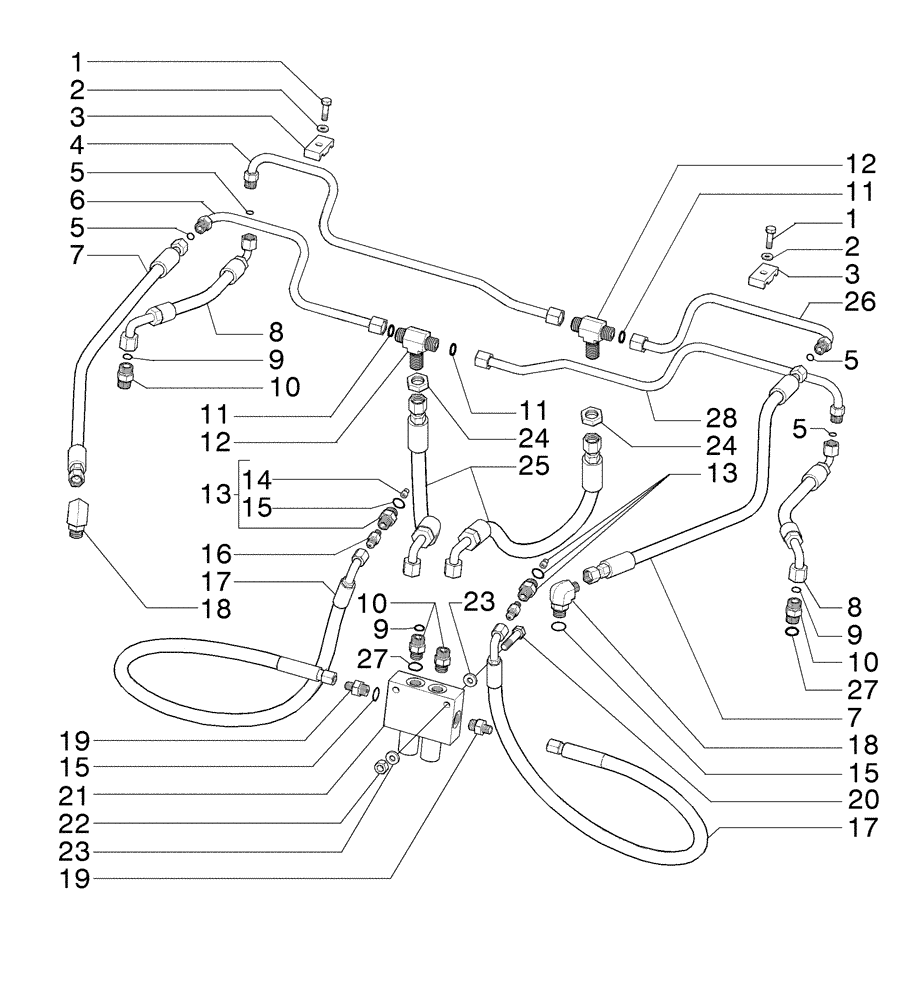

Запчасти Case 865B AWD (08-19[01]) - ARTICULATION HYDRAULIC SYSTEM (08) - HYDRAULICS

1

16043831

SCREW,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

2

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

3

70623355

COLLAR

2шт.

4

84195162

RIGID TUBE

1шт.

5

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

6

84195160

RIGID TUBE

1шт.

7

84194649

HOSE ASSY.

2шт.

8

84194648

HOSE ASSY.

2шт.

9

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

10

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

4шт.

11

9992898

O-RING

4шт.

12

86639082

TEE,13/16"-16 ORFS, Blkhd Br

2шт.

13

75325758

ORIFICE

2шт.

14

75325705

FITTING

2шт.

15

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

6шт.

16

70925656

HYD CONNECTOR

2шт.

17

75320494

FLEXIBLE HOSE

2шт.

18

201-345

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

2шт.

19

70922457

HYD CONNECTOR

2шт.

20

11107331

SCREW,Hex, M10 x 55mm, Cl 10.9

2шт.

21

84207595

BALANCE VALVE

1шт.

22

11701721

NUT,M10, Cl 10

2шт.

23

70630753

WASHER

4шт.

24

86639083

BHD LOCK NUT,13/16"-16 ORFS, Bulkhead

2шт.

25

84194647

HOSE ASSY.

2шт.

26

84195164

HYD TUBE

1шт.

27

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

28

84195158

RIGID TUBE

1шт.
