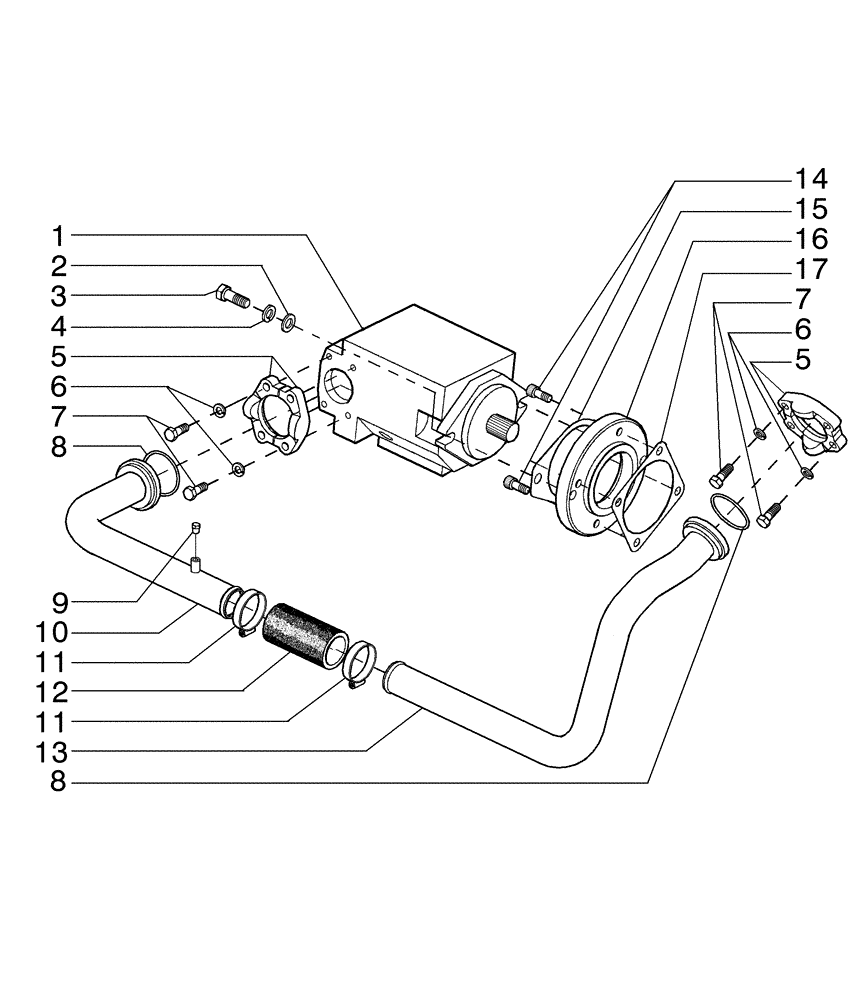

Запчасти Case 865B AWD (08-03[04]) - REAR HYDRAULIC SYSTEM - (DIRECT DRIVE) (08) - HYDRAULICS

1

75323556

HYDRAULIC PUMP,90 CC

1шт.

1

75323556R

REMAN-HYD PUMP

Reman for New PN 75323556

1шт.

1

75323556C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

87016618

LOCK WASHER,M16

2шт.

3

11118731

BOLT,Hex, M16 x 45, 10.9

2шт.

4

14496931

WASHER,17mm ID x 30mm OD x 3mm Thk

2шт.

5

70921599

CLAMP

4шт.

6

10517073

LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk

8шт.

7

11115531

BOLT,Hex, M14 x 30, 10.9, Full Thd

8шт.

8

9843376

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

2шт.

9

217-402

PLUG,Hex Hd, 1/8" - 27 NPT

1шт.

10

84271150

HYD TUBE

1шт.

11

79083847

HOSE CLAMP,M50-70

2шт.

12

73107726

HOSE

1шт.

13

84291240

HYD TUBE

1шт.

14

14422020

HEX SOC SCREW,M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

15

73151829

GASKET,0.76mm Thk

1шт.

16

75253330

SPACER

1шт.

17

70188771

GASKET,0.79mm Thk

1шт.
