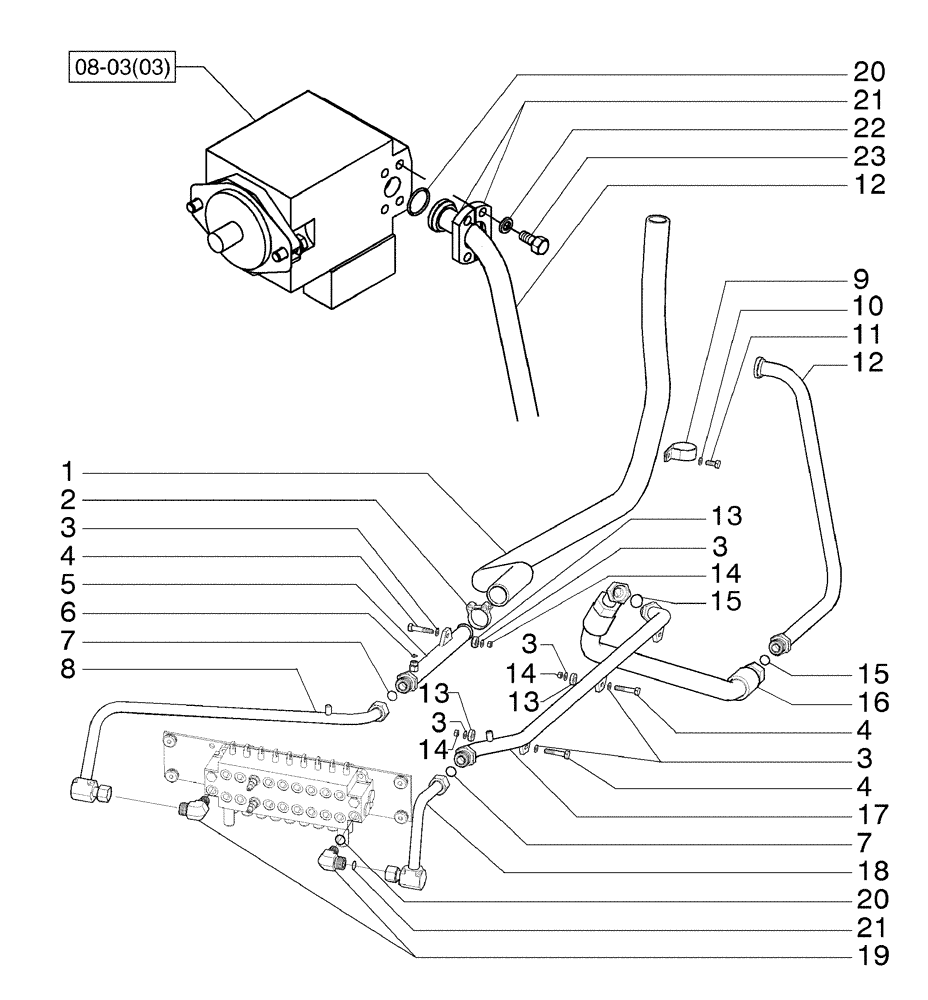

Запчасти Case 865B AWD (08-03[01]) - REAR HYDRAULIC SYSTEM - (DIRECT DRIVE) (08) - HYDRAULICS

1

75324450

HYDRAULIC HOSE,38.10 mm ID x 2500.00 mm, SAE 100R4

1шт.

2

214-2130

CLAMP,#30, 1.81"-2.06", T-Bolt

2шт.

3

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

8шт.

4

11107331

SCREW,Hex, M10 x 55mm, Cl 10.9

4шт.

5

84199644

RIGID TUBE

1шт.

6

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

7

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

8

84199678

RIGID TUBE

1шт.

9

70928439

CLAMP

1шт.

10

70915815

WASHER

1шт.

11

70922262

SCREW

1шт.

12

87657086

RIGID TUBE,26 mm ID x 32 mm OD x 588, 627 mm L

1шт.

For 140/170 Class

1шт.

12

87657871

RIGID TUBE,26 mm ID x 32 mm OD

1шт.

For 200 Class

1шт.

13

79089658

PAD

4шт.

14

16100821

NUT,M8, Cl 10

4шт.

15

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

16

87657591

FLEXIBLE HOSE

1шт.

17

84199629

RIGID TUBE

1шт.

18

87656163

RIGID TUBE,19 mm ID x 25 mm OD x 158, 202 mm L

1шт.

19

87656136

HYD CONNECTOR

2шт.

20

70923664

O-RING

1шт.

21

75253408

CLAMP

2шт.

22

10517173

LOCK WASHER,14.2mm ID x 24.1mm OD x 3.5mm Thk

4шт.

23

11115531

BOLT,Hex, M14 x 30, 10.9, Full Thd

4шт.
