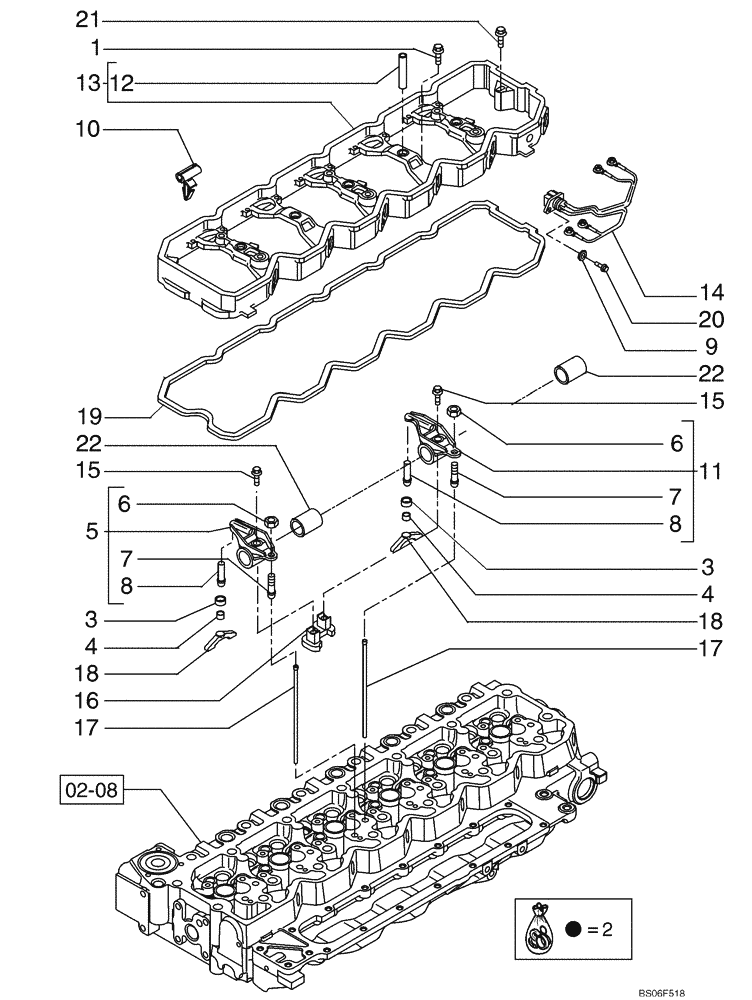

Запчасти Case 865B AWD (02-07[01]) - CYLINDER HEAD - VALVE MECHANISM (02) - ENGINE

1

4895432

SCREW,M8 x 1.25 x 70mm

M8 X 1.25 X 70

5шт.

2

2859460

ROCKER ARM

Rocker Arm Assy, Incl. Ref 3 - 8, 11, 15, 16

6шт.

3

2859464

RETAINER,10.79mm ID, 7.63mm ID

Retainer

2шт.

4

2859465

SOCKET,1.5mm ID x 11mm OD x 9mm L

Socket

2шт.

5

2859462

ROCKER ARM

ASSY, Incl. Ref 6 - 8

1шт.

6

2859467

NUT,Hex, 3/8" - 24, RH

1шт.

7

2859468

ADJUSTMENT SCREW,3/8" - 24 x 23.85mm

1шт.

8

2859470

SOCKET

1шт.

9

2852776

WASHER,6mm ID x 11mm OD

M6 x 11 x 1.6; Replaces 2852776

3шт.

10

2852428

WIRE CLAMP,6mm ID

6шт.

11

2859461

ROCKER ARM

ASSY, Incl. Ref 6 - 8

1шт.

12

4899245

SLEEVE,9mm ID x 13.9mm OD x 55.25mm L

5шт.

13

4899257

HOUSING

HOUSING Assy; Rocker Lever; Incl. Ref 12

1шт.

14

2852427

WIRE HARNESS

3шт.

15

4899089

SCREW,Hex Flg, M8 x 1.25 x 50

Flange

2шт.

16

2859463

SUPPORT

1шт.

17

4895031

PUSH ROD

12шт.

18

2854530

BRIDGE

Crosshead Valve

12шт.

19

2853788

GASKET,10.35mm Thk

1шт.

20

2852602

HEX SOC SCREW,M6 x 16mm

Socket, M6 X 16

3шт.

21

2856460

BOLT,Flng, M8 x 1.25 x 55.5mm, Cl 10.9

2шт.

22

2856459

ROCKER ARM

2шт.
