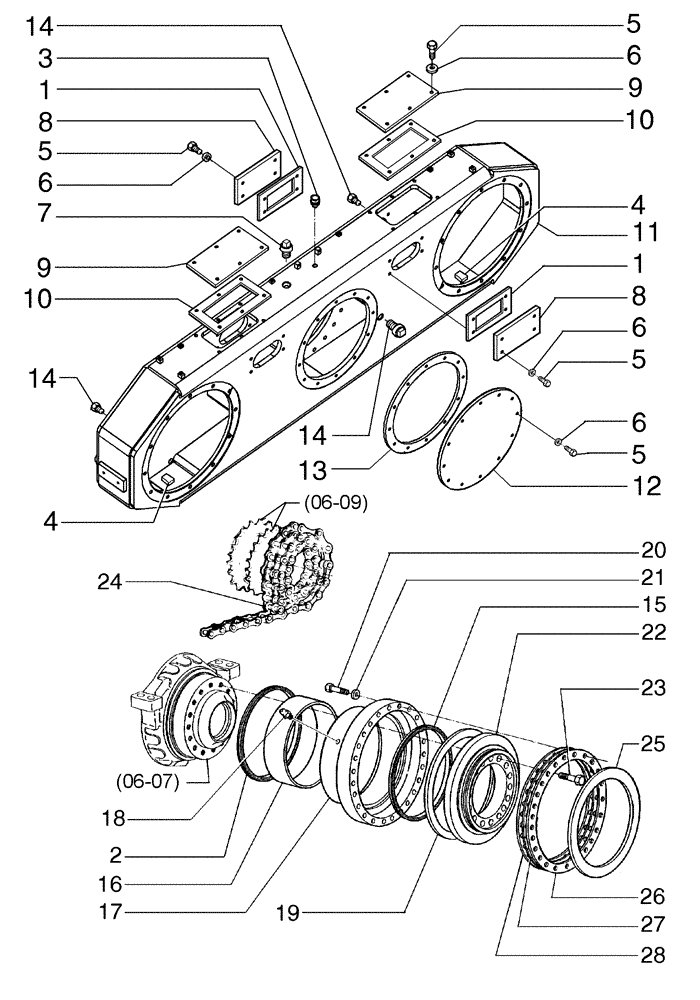

Запчасти Case 865B AWD (06-23[01]) - REAR AXLE, TANDEM (06) - POWER TRAIN

1

84405528

GASKET,1.5mm Thk

4шт.

2

75326525

GASKET,315mm ID x 331mm OD x 7.5mm Thk

2шт.

3

84385694

BREATHER

1шт.

4

87476417

BLOCK

2шт.

5

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

40шт.

6

10516871

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

40шт.

7

70912768

PLUG

1шт.

8

75266712

COVER PLATE

4шт.

9

87677039

COVER

2шт.

10

84405529

GASKET,1.5mm Thk

2шт.

11

87665244

BOX

1шт.

12

75266741

COVER

1шт.

13

73161784

GASKET,1.5mm Thk

1шт.

14

70920416

PLUG

4шт.

15

84379010

OIL SEAL,363mm ID x 375mm OD x 9mm Thk

2шт.

16

75246450

BUSHING,350mm ID x 362.5mm OD x 80mm L

2шт.

17

75266759

FLANGE

2шт.

18

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

4шт.

19

75253782

RING,380mm ID x 440mm OD x 3mm Thk

2шт.

20

15981231

BOLT,Hex, M16 x 1.5 x 65mm, Cl 10.9

48шт.

21

10517273

WASHER

48шт.

22

75258149

COVER

2шт.

23

15988531

BOLT,Hex, M20 x 1.5 x 70mm, Cl 10.9, Full Thd

48шт.

24

87667592

CHAIN,Complete, 140/170 Diff Lock, 52 Links x 50.8mm = 2641.6mm

4шт.

25

73155650

RING,363mm ID x 440mm OD x 3mm Thk

2шт.

26

75325418

SHIM,444mm ID x 502mm OD x 0.45mm Thk

0,45mm

6шт.

27

75325420

SHIM,444mm ID x 502mm OD x 0.15mm Thk

0,15mm

10шт.

28

75325419

SHIM,444mm ID x 502mm OD x 0.18mm Thk

0,18mm

6шт.
