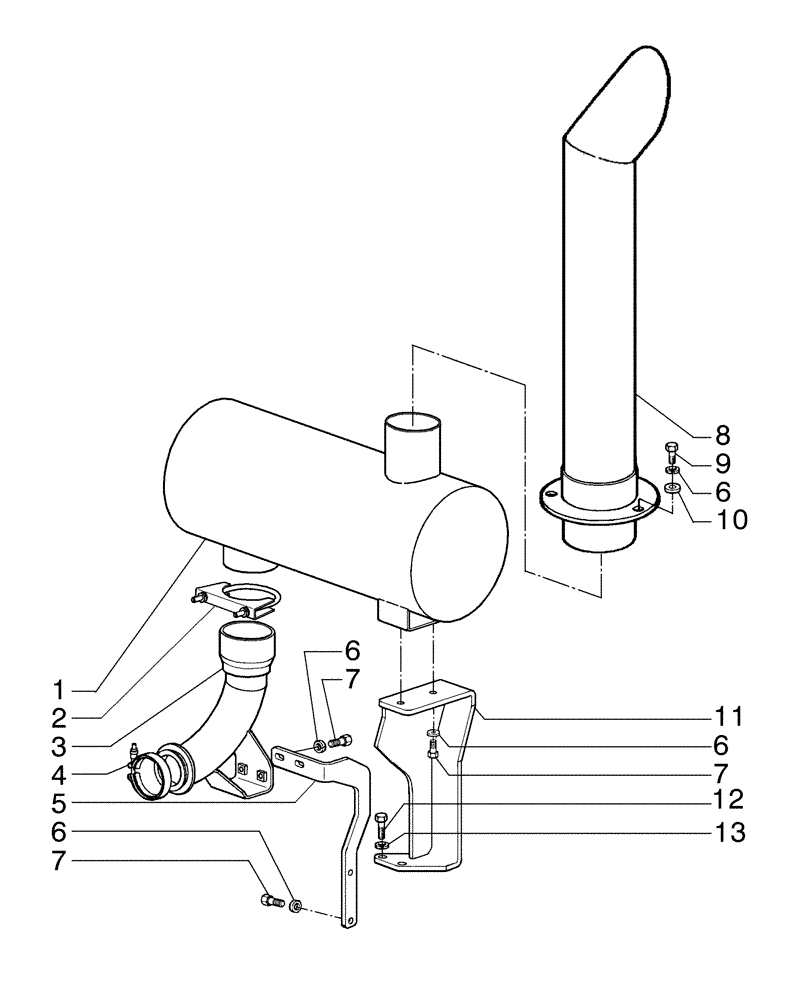

Запчасти Case 865B (02-20[01]) - MUFFLER AND EXHAUST PIPE (02) - ENGINE

1

73164453

MUFFLER

1шт.

2

A162896

CLAMP

1шт.

3

84171611

EXHAUST SYSTEM PIPE

1шт.

For 865 and 885 Class

1шт.

3

84303791

ELBOW

1шт.

For 845 Class

1шт.

4

J903652

CLAMP

1шт.

5

84171620

SUPPORT

1шт.

6

10516871

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

9шт.

7

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.

8

75323452

PIPE

1шт.

9

11106631

SCREW,Hex, M10 x 35mm, Cl 10.9, Full Thd

3шт.

10

12646821

WASHER,10.2mm ID x 25mm OD x 2mm Thk

3шт.

11

84297671

SUPPORT

1шт.

12

11112331

BOLT,Hex, M12 x 28mm, Cl 10.9, Full Thd

2шт.

13

10517071

LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk

2шт.
