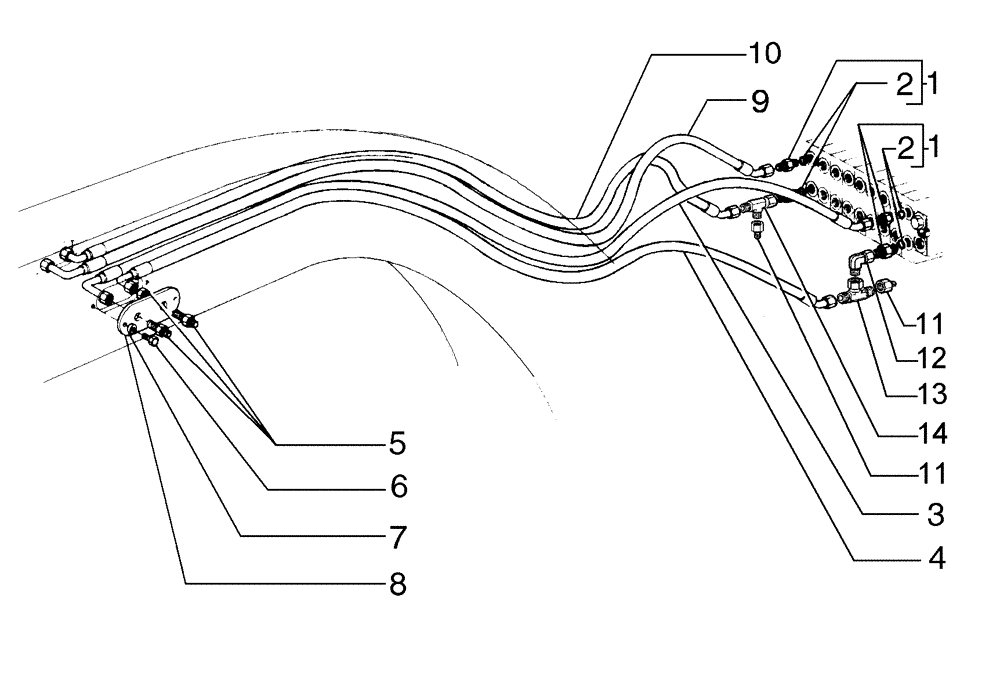

Запчасти Case 865B (08-12[01]) - MOLDBOARD LIFT PIPING (08) - HYDRAULICS

1

70921409

HYD CONNECTOR

4шт.

2

70921885

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

3

75251170

FLEXIBLE HOSE

1шт.

4

75251169

FLEXIBLE HOSE

1шт.

5

70927261

HYD CONNECTOR

4шт.

6

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

4шт.

7

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

4шт.

8

75267102

COVER

2шт.

9

75252827

FLEXIBLE HOSE

1шт.

10

75252826

FLEXIBLE HOSE

1шт.

11

70923102

REDUCER

2шт.

12

70921279

ELBOW

1шт.

13

70921276

HYD CONNECTOR

1шт.

14

70921298

3 WAY CONNECTION

1шт.
