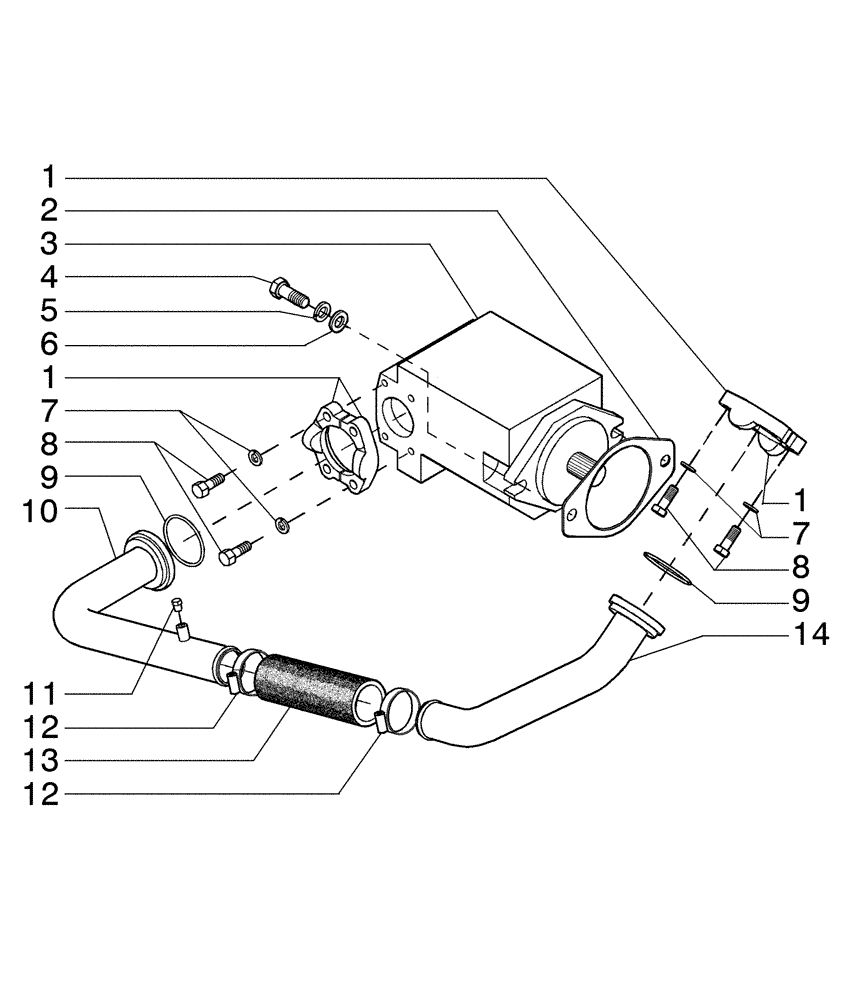

Запчасти Case 865B (08-03[03]) - REAR HYDRAULIC SYSTEM - (TORQUE CONVERTER) (08) - HYDRAULICS

1

70921599

CLAMP

4шт.

2

73151829

GASKET,0.76mm Thk

1шт.

3

75323556

HYDRAULIC PUMP,90 CC

1шт.

3

75323556R

REMAN-HYD PUMP

845B (NEW CAB), 865B (New Cab), All w/Tier 3 Engines

1шт.

3

75323556C

CORE-HYDRAULIC PUMP

Return Number

1шт.

4

11118731

BOLT,Hex, M16 x 45, 10.9

2шт.

5

87016618

LOCK WASHER,M16

2шт.

6

14496931

WASHER,17mm ID x 30mm OD x 3mm Thk

2шт.

7

10517073

LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk

8шт.

8

11115531

BOLT,Hex, M14 x 30, 10.9, Full Thd

8шт.

9

9843376

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

2шт.

10

84271150

HYD TUBE

1шт.

11

217-402

PLUG,Hex Hd, 1/8" - 27 NPT

1шт.

12

79083847

HOSE CLAMP,M50-70

2шт.

13

75236034

HOSE,50.80 mm ID x 195.00 mm, SAE 100R4

1шт.

14

84271147

HYD TUBE

1шт.
