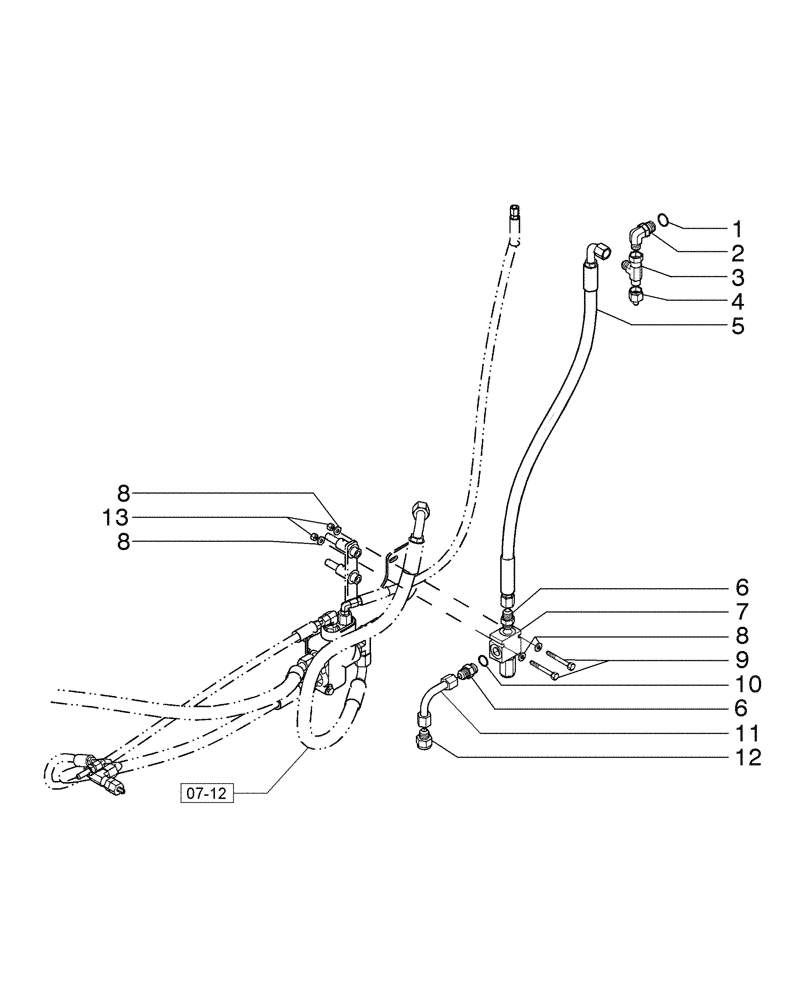

Запчасти Case 865B (07-11[01]) - BRAKE - STEERING HYDRAULIC SYSTEM (07) - BRAKES

1

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

1шт.

3

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

4

218-764

REDUCER,37 Degree, 3/4"-16, Fem x 7/16"-20 Male

1шт.

5

75251181

FLEXIBLE HOSE

1шт.

6

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

2шт.

7

75257335

VALVE PRESSURE RELIE

1шт.

8

70928190

WASHER

4шт.

9

70934150

SCREW

2шт.

10

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.

11

75255618

TUBE,9.7 mm ID, 12.7 mm OD, 74, 59 mm Length

1шт.

12

218-789

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

1шт.

13

70920329

NUT

2шт.
