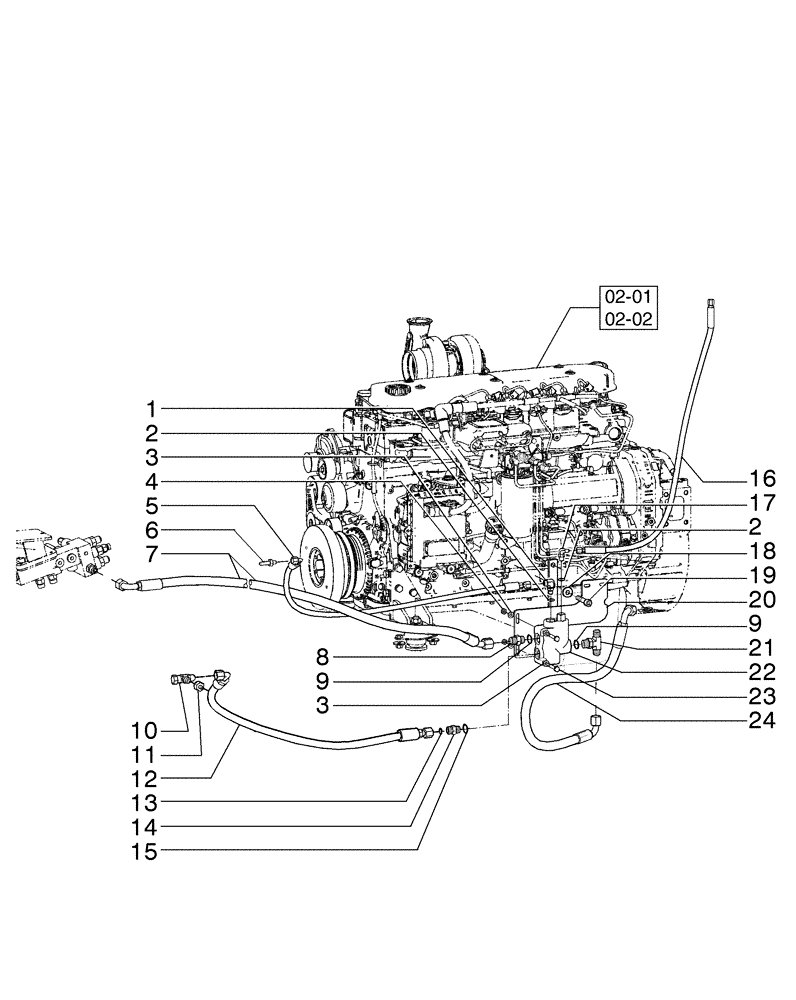

Запчасти Case 865B (07-10[02]) - BRAKE - STEERING HYDRAULIC SYSTEM (07) - BRAKES

1

87681199

90 ELBOW

1шт.

2

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

3

10519621

WASHER,8.15mm ID x 17mm OD x 2mm Thk

4шт.

4

43362

NUT,M8 x 1.25, Cl 10

2шт.

5

84201848

HOSE ASSY.

1шт.

6

218-671

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

1шт.

7

87359218

HOSE ASSY.

1шт.

8

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

10

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

11

218-764

REDUCER,37 Degree, 3/4"-16, Fem x 7/16"-20 Male

1шт.

12

84290578

HOSE,12.7mm ID x 1050mm L, SAE 100R2

1шт.

13

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

14

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

1шт.

15

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

16

87359203

HOSE ASSY.

1шт.

17

218-5102

ELBOW,90 Degree Elbow, 3/8" - 24 Male JIC x 3/8" - 24 Male ORB

1шт.

18

12646921

WASHER,12.2mm ID x 28mm OD x 3mm Thk

2шт.

19

86512143

HEX SOC SCREW,M12 x 1.75 x 70mm, Cl 12.9, Full Thd

2шт.

20

84191598

SUPPORT

1шт.

21

218-5184

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

1шт.

22

73163844

HYDRAULIC VALVE

1шт.

23

86639211

BOLT,Hex, M8 x 65mm, Cl 10.9

2шт.

24

84566467

HOSE ASSY.

1шт.
