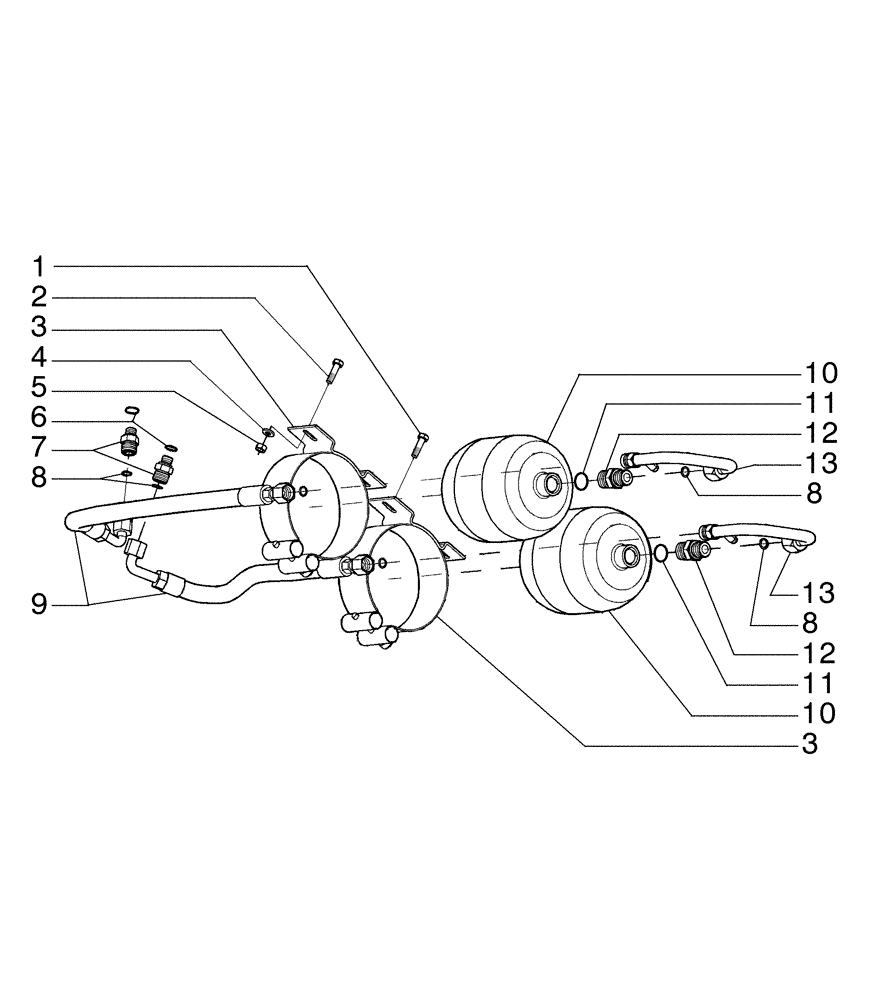

Запчасти Case 865B (07-10[01]) - BRAKE HYDRAULIC SYSTEM (07) - BRAKES

1

16043931

SCREW,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

2шт.

2

43235

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

3

76028577

CLAMP,152mm - 159mm

2шт.

4

10519621

WASHER,8.15mm ID x 17mm OD x 2mm Thk

4шт.

5

43362

NUT,M8 x 1.25, Cl 10

4шт.

6

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

7

75239803

LUBE NIPPLE

2шт.

8

70923841

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

6шт.

9

75252441

FLEXIBLE HOSE

2шт.

10

76028575

ACCUMULATOR

2шт.

11

14437785

O-RING,11.3mm ID x 2.4mm

2шт.

12

75254105

HYD CONNECTOR

2шт.

13

75253784

RIGID TUBE

2шт.
