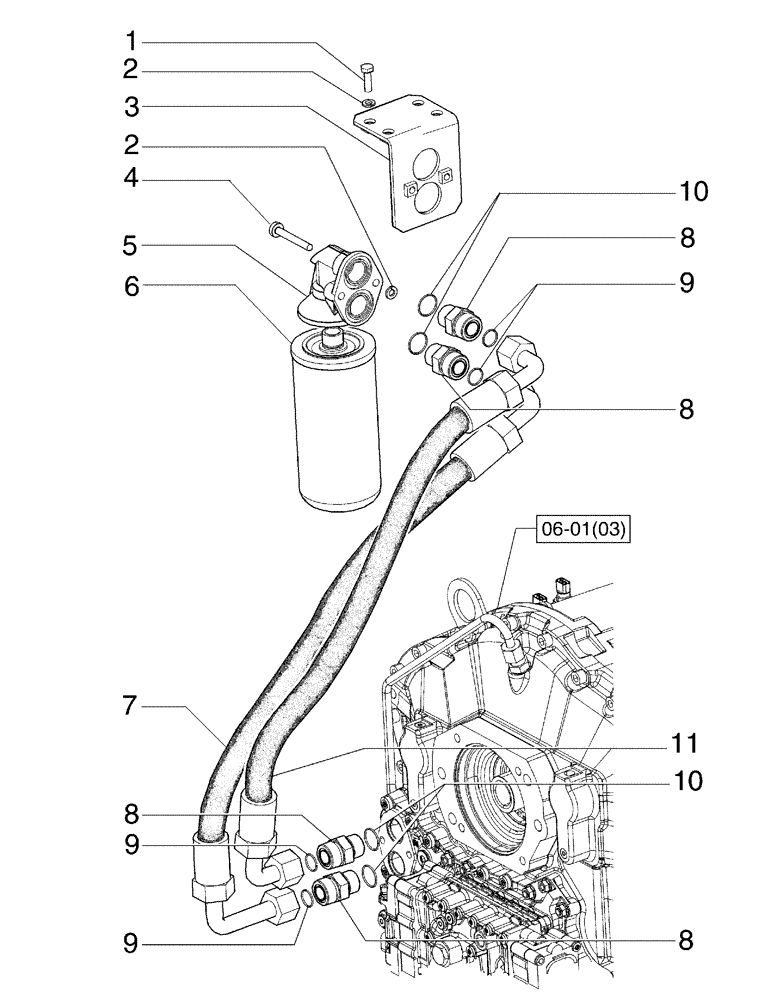

Запчасти Case 865B (06-01[21]) - TRANSMISSION FILTER LINES - (TORQUE CONVERTER) (06) - POWER TRAIN

1

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

2

10516671

LOCK WASHER

6шт.

3

87739038

SUPPORT

1шт.

4

84122334

SCREW,M8 x 40mm

2шт.

5

76081102

FILTER HEAD

1шт.

6

87519452

HYDRAULIC OIL FILTER

1шт.

7

87739470

HOSE,19mm ID x 815mm L, SAE 100R2

1шт.

8

75283938

FITTING

4шт.

9

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

10

14457680

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

4шт.

11

87739471

HOSE,19mm ID x 815mm L, SAE 100R2

1шт.
