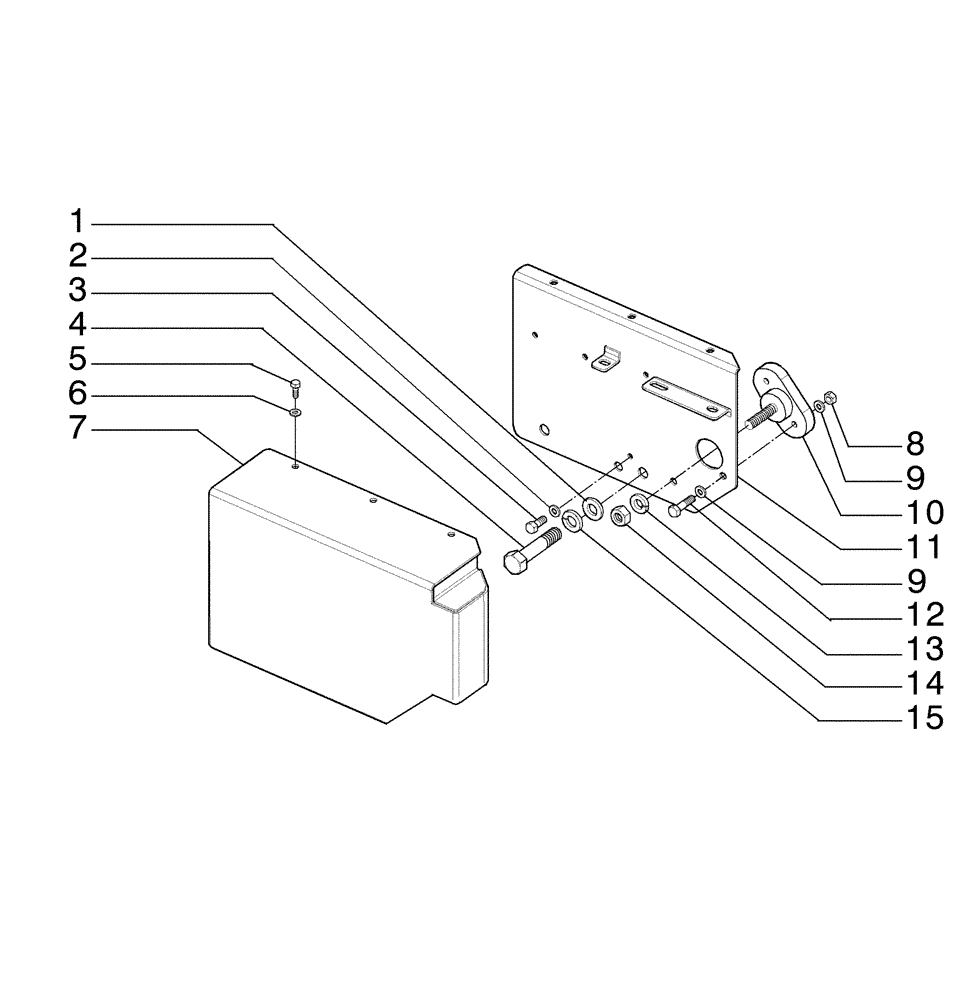

Запчасти Case 845B (04-14[01]) - ELECTRICAL SYSTEM, FPT ENGINE (04) - ELECTRICAL SYSTEMS

1

10520001

WASHER,12.2mm ID x 22mm OD x 3mm Thk

2шт.

2

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

4шт.

3

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

4

11113431

SCREW,Hex, M12 x 60mm, Cl 10.9

2шт.

5

10977731

BOLT,Hex, M5 x 14mm, Cl 10.9, Full Thd

3шт.

6

86625261

WASHER,5.5mm ID x 10mm OD x 1mm Thk

3шт.

7

84307338

COVER ASSY

1шт.

8

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

9

12639701

WASHER,6.15mm ID x 11mm OD x 1mm Thk

4шт.

10

L124085

CONNECTOR, ELEC

CONNECTOR

1шт.

11

84325227

SUPPORT

1шт.

12

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

13

492-11038

LOCK WASHER,3/8"

1шт.

14

425-106

NUT,3/8"-16, Cl 5

1шт.

15

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

2шт.
