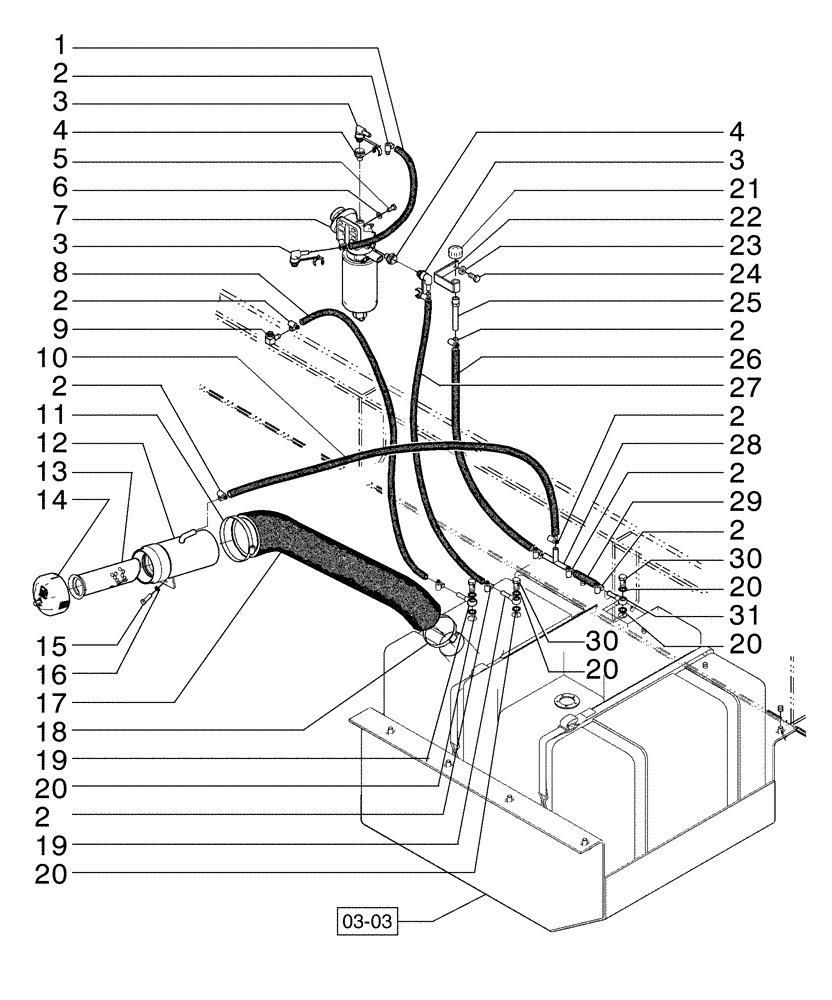

Запчасти Case 845B (03-01[01]) - FUEL LINES (03) - FUEL SYSTEM

1

73162469

HOSE

1шт.

2

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

12шт.

3

8605735

90 ELBOW

3шт.

4

47728714

ADAPTER

2шт.

4

8602542

ADAPTER,M14 x 1.5 x 16mm ID x 7.90mm ID

2шт.

5

16043431

SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

6

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

7

87435522

FILTER ASSY

1шт.

8

87361282

FUEL HOSE,9.53 mm ID x 1600.00 mm, SAE J30, SAE 30R2 Type 1

1шт.

9

87400460

90 ELBOW

1шт.

10

75248976

TUBE,12.70 mm ID x 1500.00 mm

1шт.

11

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

1шт.

12

75325670

TUBE ASSY.,234.4 mm Length

1шт.

12

47946858

NECK FILLER

, Start Serial: HBZN0865EGAF05654

1шт.

13

75325672

FILTER SCREEN

1шт.

14

87362264

FILLER CAP,Vented

1шт.

14

47599087

COVER

, Start Serial: HBZN0865EGAF05654

1шт.

15

16043831

SCREW,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

16

10516671

LOCK WASHER

1шт.

17

75321358

FUEL HOSE,76.30 mm ID, 105.30 mm ID x 426.30 mm

1шт.

18

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

1шт.

19

79010214

HYD CONNECTOR

2шт.

20

87537674

SEALING WASHER

SEALRING

6шт.

21

70050748

BREATHER

1шт.

22

73156453

PIN

1шт.

23

70677006

WASHER,10.31mm ID x 22.23mm OD x 4.76mm Thk

1шт.

24

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

1шт.

25

73153451

RIGID TUBE

1шт.

26

73153454

HOSE

1шт.

27

87361280

FUEL HOSE,9.53 mm ID x 1450.00 mm, SAE J30, SAE 30R2 Type 1

1шт.

28

73153450

HYD CONNECTOR

1шт.

29

73153814

HOSE

1шт.

30

10184317

BANJO BOLT,M14 x 1.5 x 27mm

3шт.

31

75252238

HYD CONNECTOR

1шт.
