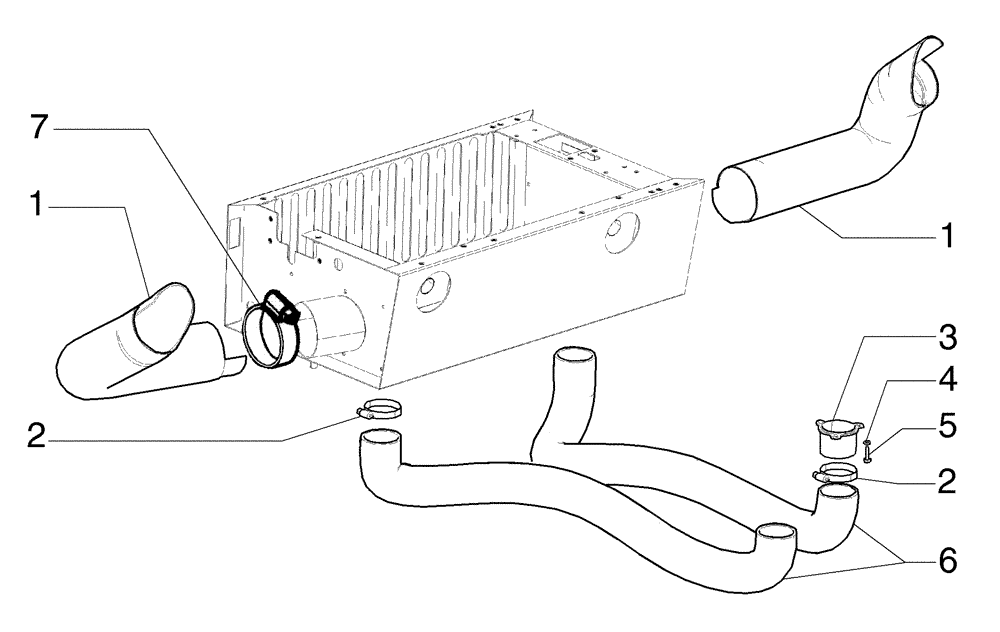

Запчасти Case 845B (09-50[01]) - CAB, AIR CONDITIONER DUCTS (09) - CHASSIS/ATTACHMENTS

1

84304856

AIR DUCT

2шт.

2

86625032

HOSE CLAMP,88.9mm ID - 65mm ID

4шт.

3

84310907

TUBE

2шт.

4

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

6шт.

5

10902631

BOLT,Hex, M6 x 25mm, Cl 10.9

6шт.

6

84304854

AIR DUCT

2шт.

7

84304860

CLAMP

4шт.
