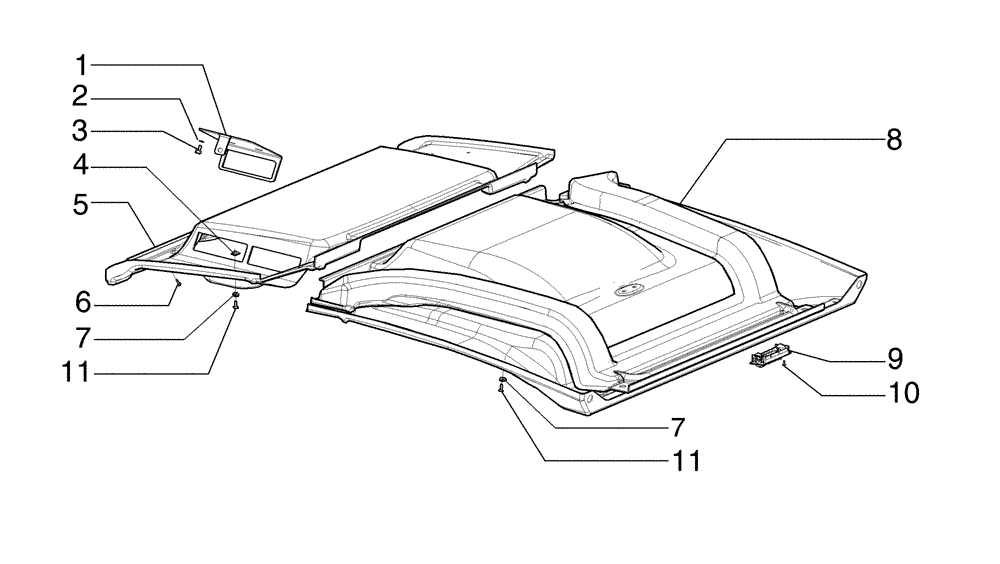

Запчасти Case 845B (09-44[01]) - CAB, ROOF COVERINGS (09) - CHASSIS/ATTACHMENTS

1

84197662

SUPPORT

1шт.

2

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

2шт.

3

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

4

833-40306

SPRING NUT,M6, U

1шт.

5

84129141

HEADLINER

1шт.

5

84323979

COVER

Open Cab

1шт.

6

87036224

BOLT,Flng, M4 x 16mm, Cl 4.8

8шт.

7

85801991

WASHER,6.3mm OD x 18mm ID x 4mm Thk

1шт.

8

84129140

HEADLINER

1шт.

8

84323977

COVER

Open Cab

1шт.

9

84159954

OUTLET

1шт.

10

86502975

SELF-TAP SCREW,Pan HD, #6 - 20 x 3/8"

1шт.

11

13313217

SCREW,Pozidriv Oval Hd, Csk, M6 x 20mm, Cl 5.8, Full Thd

1шт.
