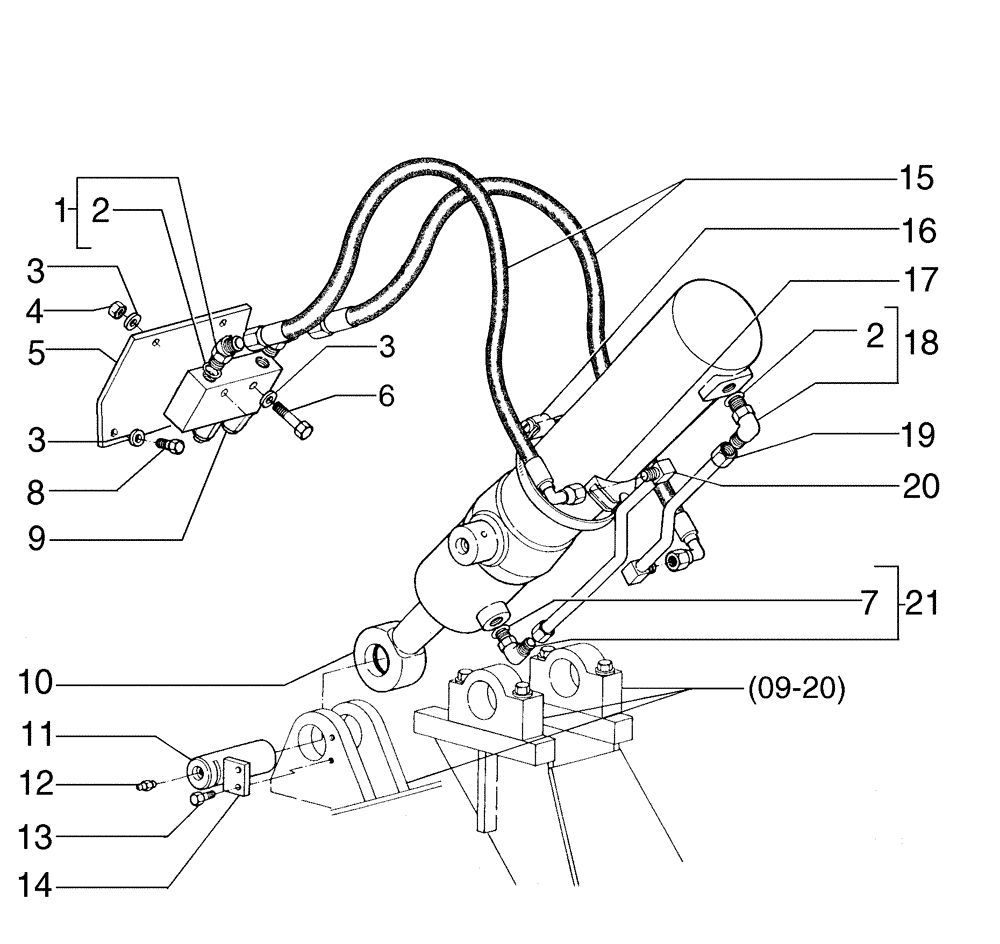

Запчасти Case 845B (08-23[01]) - RIPPER CYLINDER PIPING (08) - HYDRAULICS

1

70922507

ELBOW

2шт.

2

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

3

70630753

WASHER

4шт.

4

11701721

NUT,M10, Cl 10

2шт.

5

75252422

PLATE

1шт.

6

11107631

SCREW,Hex, M10 x 70mm, Cl 10.9

2шт.

7

70921885

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

2шт.

9

84207595

BALANCE VALVE

1шт.

Page 08-37

1шт.

10

75267106

CYLINDER

1шт.

10

75267105R

REMAN-HYD CYLINDER

1шт.

10

75267105C

CORE-HYD CYLINDER

Return Number

1шт.

11

76002504

PIN,60mm OD x 170mm L

1шт.

12

13407211

LUBE NIPPLE,M10 x 1

1шт.

13

15540431

SCREW,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

14

8270126

PLATE

1шт.

15

73127637

FLEXIBLE HOSE

Assy

2шт.

16

85803008

HOSE CLAMP,110mm - 130mm

1шт.

17

83901828

SPACER,R8.4mm, R45mm

2шт.

18

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

1шт.

19

75252624

RIGID TUBE

1шт.

20

75252626

RIGID TUBE

1шт.

21

70930804

ELBOW

1шт.
