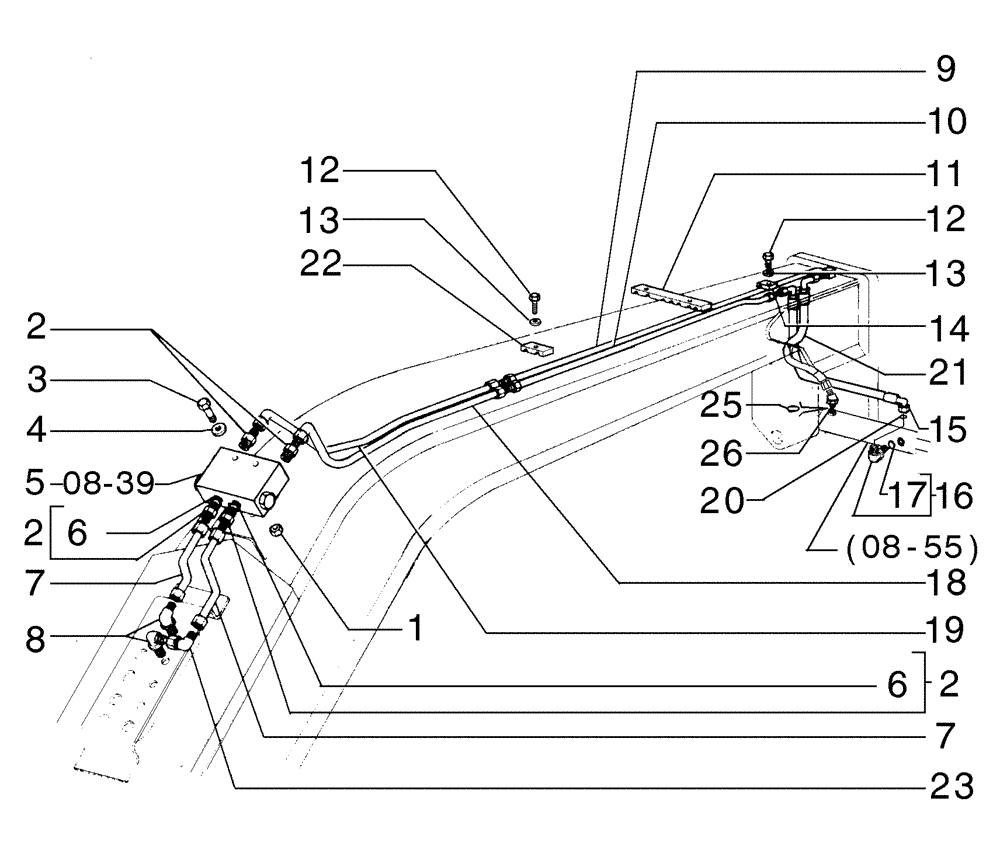

Запчасти Case 845B (08-18[01]) - FRONT WHEEL LEAN PIPING (08) - HYDRAULICS

1

70920329

NUT

2шт.

2

70922457

HYD CONNECTOR

4шт.

3

70930238

SCREW

2шт.

4

70900816

WASHER

4шт.

5

75252292

HYDRAULIC VALVE

1шт.

Page 08-39

1шт.

6

70921885

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

7

75248917

RIGID TUBE,6.5 mm ID, 9.5 mm OD, 140, 35 mm Length

2шт.

8

70928378

ELBOW

2шт.

9

75248925

RIGID TUBE,9.5 mm OD, 2618, 40 mm Length

1шт.

10

75248921

RIGID TUBE,9.5 mm OD, 2529, 29 mm Length

1шт.

11

75250315

CLAMP

1шт.

12

16044331

SCREW,Hex, M8 x 1.25 x 55mm, Cl 10.9

1шт.

13

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

14

73127629

CLAMP

1шт.

15

87712860

FLEXIBLE HOSE

1шт.

16

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

2шт.

17

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

18

75248994

RIGID TUBE

1шт.

19

75248924

RIGID TUBE

1шт.

20

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

21

75255793

HOSE,9.5mm ID x 1215mm L, SAE 100R2

1шт.

22

70695523

CLAMP

1шт.

23

70921013

ELBOW

1шт.

24

218-1254

LOCK NUT,Blkhd, 9/16"-18

2шт.

25

86639044

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

26

87674065

FITTING

1шт.
