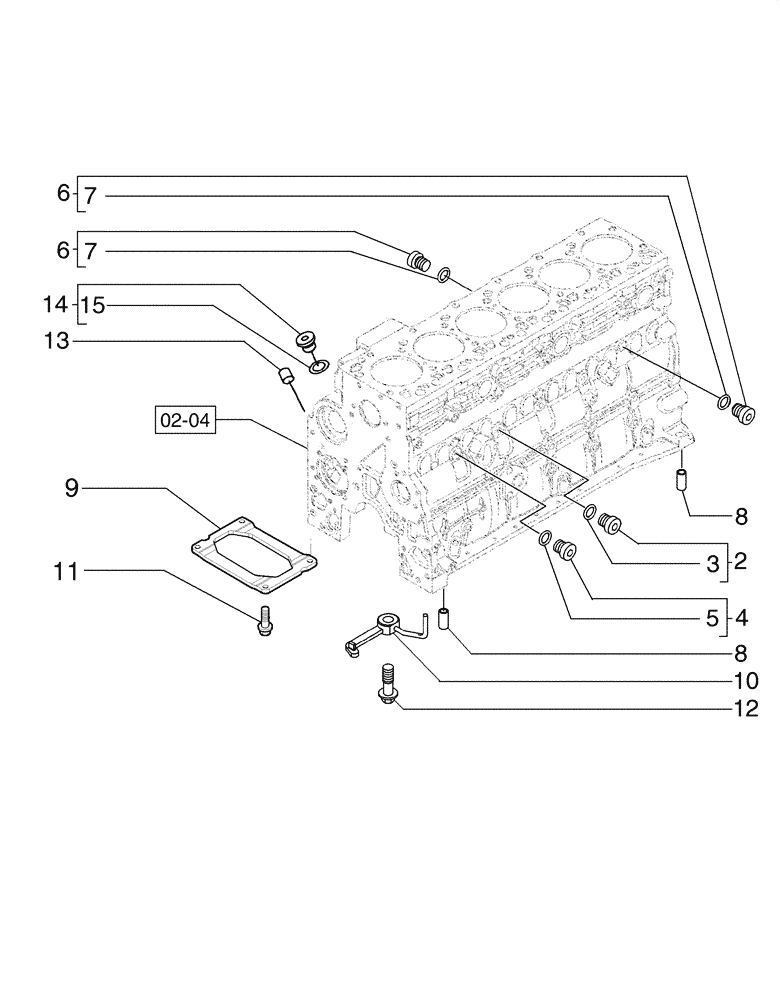

Запчасти Case 845B (02-10[01]) - CYLINDER BLOCK - PLUGS AND PISTONS (02) - ENGINE

1

4895610

O-RING,2.2mm Thk x 9.3mm ID

1шт.

2

4895605

HEX SOCKET PLUG,M14 x 1.5

- Assy, Incl. Ref 3

2шт.

3

4899115

O-RING,2.2mm Thk x 11.3mm ID

1шт.

4

4899009

PLUG,M10 x1

Incl. Ref

2шт.

5

4899072

O-RING,1.6mm Thk x 8.1mm ID

1шт.

6

4895392

HEX SOCKET PLUG,M18 x 1.5

- Assy; Incl. Ref 7

2шт.

7

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

8

4895049

DOWEL,M16.05 x 10

2шт.

9

2852729

STIFFENER

57 mm Length; Replaces 4899803 54 mm Length; Used On Some Models

1шт.

10

2852202

NOZZLE, PISTON COOLI

Piston; See Figure 02-35

6шт.

11

4899032

SCREW,Hex Flg, M10 x 1.5 x 25

Camshaft; See Figure 02-30

4шт.

12

4894218

SCREW,Special, M8 x 20

Piston Cooling

6шт.

13

4895406

EXPANSION PLUG,9.8mm OD

2шт.

14

4897330

HEX SOCKET PLUG,M12 x 1.5

Incl. Ref 17

1шт.

15

4895610

O-RING,2.2mm Thk x 9.3mm ID

2шт.
