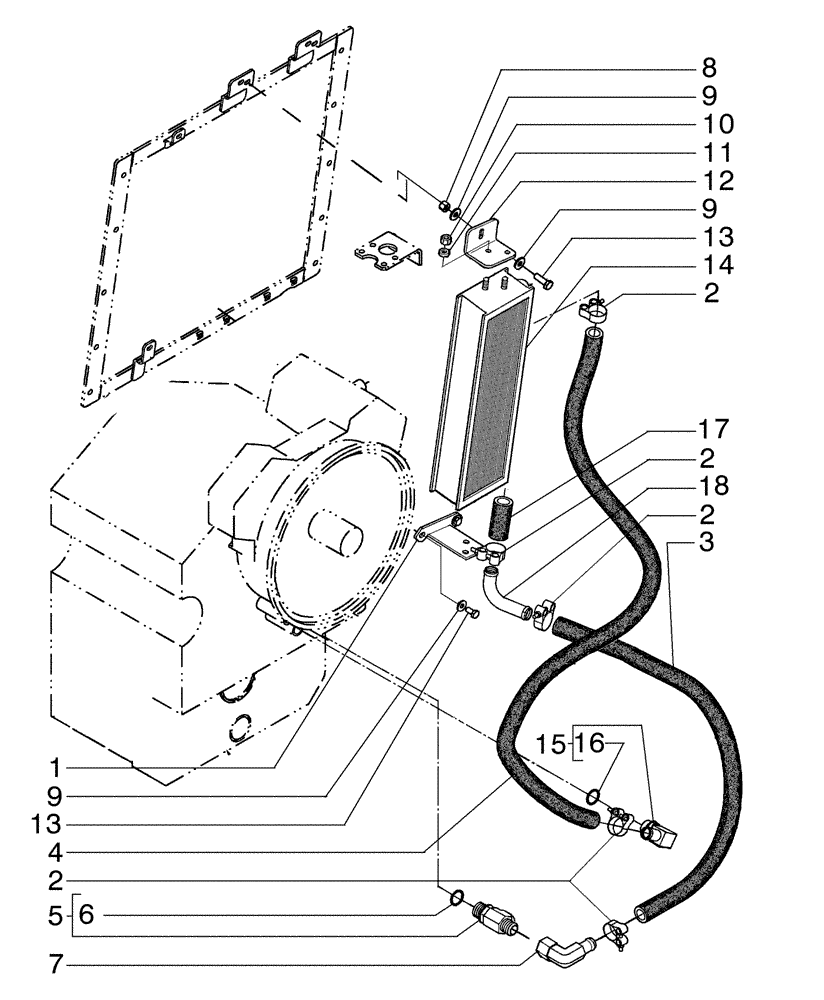

Запчасти Case 845B (06-02[22]) - TRANSMISSION OIL COOLER - (DIRECT DRIVE) (06) - POWER TRAIN

1

84238418

SUPPORT

1шт.

2

87372829

CLAMP,1.40" - 1.56"

4шт.

3

87376427

HOSE,25.4mm ID x 1050mm L, SAE 100R3

1шт.

4

84251849

HOSE,25.4mm ID x 1830mm L, SAE 100R3

1шт.

5

70922739

HYD CONNECTOR

1шт.

6

70921206

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

84241233

90 ELBOW

1шт.

8

829-4408

NUT,Thin, M8 x 1.25, Cl 05

2шт.

9

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

4шт.

10

16102321

THIN NUT,Thin, M8 x 1.25, Cl 05

4шт.

11

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

4шт.

12

87752061

SUPPORT

1шт.

13

16043331

SCREW,Hex, M8 x 1.25 x 18mm, Cl 10.9, Full Thd

3шт.

14

87751052

OIL COOLER

1шт.

15

217-352

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

1шт.

16

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

17

E66256

SLEEVE

1шт.

18

87489520

RETURN PIPE

1шт.
