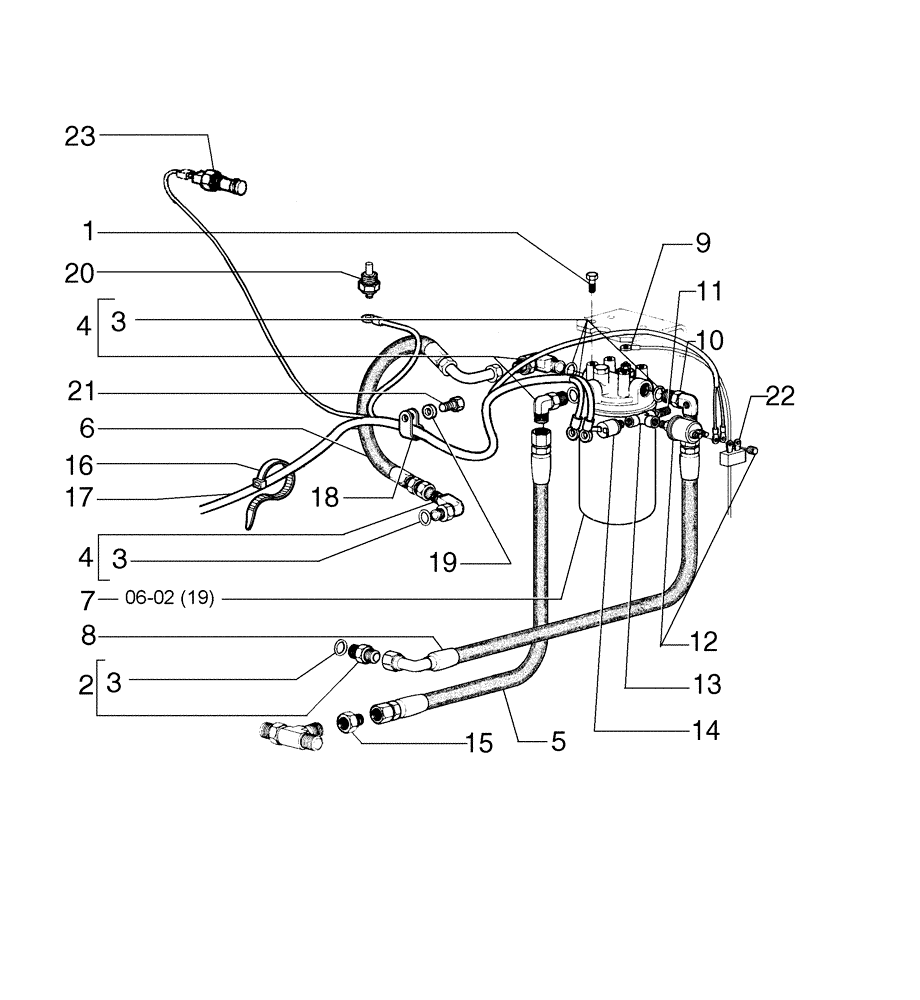

Запчасти Case 845B (06-02[17]) - TRANSMISSION FILTER LINES - (DIRECT DRIVE) (06) - POWER TRAIN

1

11106031

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

4шт.

2

70923174

HYD CONNECTOR

1шт.

3

70921206

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

5шт.

4

70924026

ELBOW

3шт.

5

73162141

HOSE,25.4mm ID x 940mm L, SAE 100R5

1шт.

6

73162142

FLEXIBLE HOSE,22.2mm ID x 750mm L, SAE 100R5

1шт.

7

73161226

FILTER

1шт.

8

73162142

FLEXIBLE HOSE,22.2mm ID x 750mm L, SAE 100R5

1шт.

9

75253138

ELECTRIC CABLE

1шт.

10

75255651

ELBOW

1шт.

11

70926031

HYD CONNECTOR

1шт.

12

75259844

SENSOR

Transmission pressure

1шт.

13

70901702

3 WAY CONNECTION

1шт.

14

73139080

PRESSURE SWITCH

1шт.

15

75238305

HYD CONNECTOR

1шт.

16

75201641

CLAMP

10шт.

17

87682623

HARNESS

1шт.

18

70927155

CLIP

1шт.

19

70930370

WASHER,0.44" ID x 0.69" OD x 0.11" Thk

1шт.

20

1983238C1

SENSOR,1/2" - 14

1шт.

21

11106631

SCREW,Hex, M10 x 35mm, Cl 10.9, Full Thd

1шт.

22

75323377

RESISTOR

1шт.

23

75322672

SENSOR

1шт.
