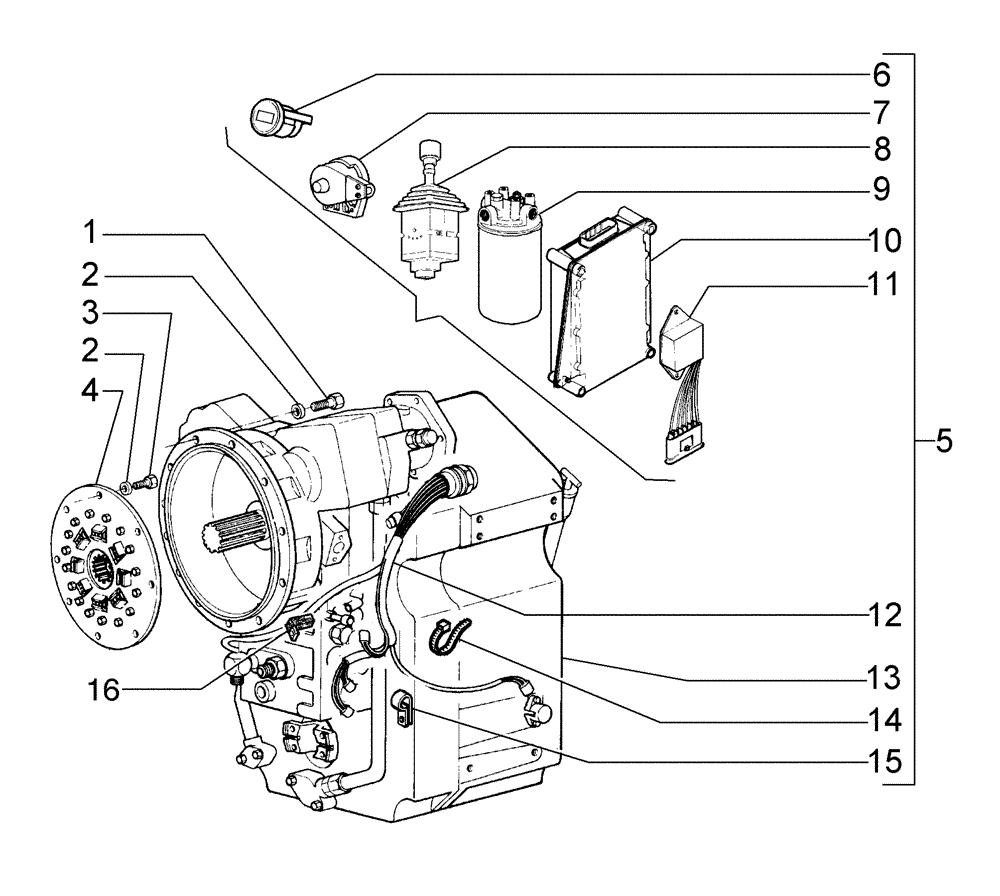

Запчасти Case 845B (06-02[01]) - TRANSMISSION ASSY - (DIRECT DRIVE) (06) - POWER TRAIN

1

11106631

SCREW,Hex, M10 x 35mm, Cl 10.9, Full Thd

12шт.

2

70930370

WASHER,0.44" ID x 0.69" OD x 0.11" Thk

20шт.

3

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

8шт.

4

75249578

DAMPER,352.25mm OD

1шт.

4

75249578R

REMAN-DAMPER

845B, 865B, Both MOTOR GRADER TIER 3 (NEW CAB), ASSY - (DIRECT DRIVE) (12/10-)

1шт.

4

75249578C

CORE-DAMPER

Return Number

1шт.

5

73161232

TRANSMISSION

1шт.

6

73162493

INDICATOR

Gear

1шт.

Page 04-12

1шт.

7

73162489

SENSOR

1шт.

Page 06-23

1шт.

8

73162490

LEVER

Control

1шт.

Page 06-24

1шт.

8

73162490R

REMAN ELECT CONTROL

845B, 865B, Both MOTOR GRADER TIER 3 (NEW CAB) (12/10-)

1шт.

8

73162490C

CORE-ELECTRONIC CONT

Return Number

1шт.

9

73161226

FILTER

1шт.

Page 06-21

1шт.

10

73162491

CONTROL VALVE

1шт.

Page 04-13

1шт.

11

73162492

CONTROL

1шт.

Page 04-13

1шт.

12

75312856

CABLE ASSY.

1шт.

Page 04-06

1шт.

13

75312851

GEARBOX

1шт.

13

75312851R

REMAN-TRANSMISSION

1шт.

13

75312851C

CORE-TRANSMISSION

Return Number

1шт.

14

75312858

STRAP

6шт.

15

75312857

STRAP

1шт.

16

75324136

COVER

2шт.
