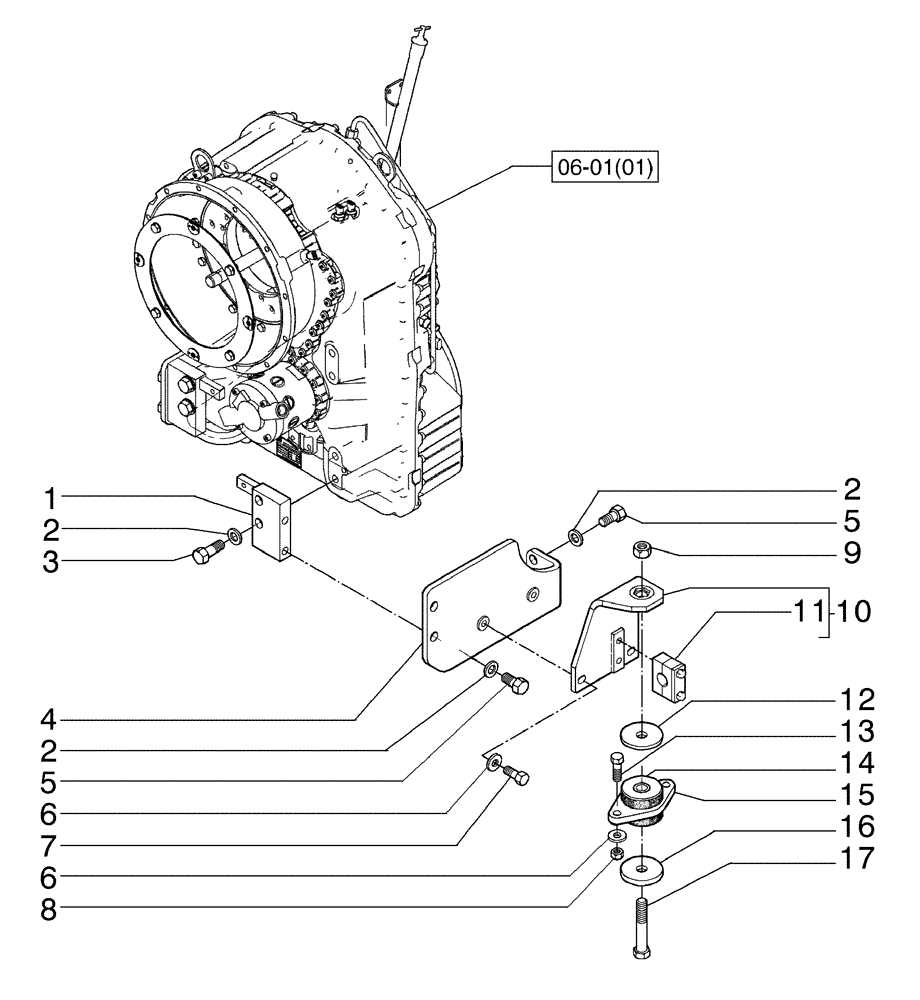

Запчасти Case 845B (06-01[00]) - TRANSMISSION, SUPPORTS - (TORK CONVERTER) (06) - POWER TRAIN

1

87739035

SUPPORT

LH

1шт.

1

87739036

SUPPORT

RH

1шт.

2

14497131

WASHER,21mm ID x 37mm OD x 3mm Thk

12шт.

3

11124831

BOLT,Hex, M20 x 55, 10.9, Full Thd

4шт.

4

87739045

SUPPORT

LH

1шт.

4

84311530

SUPPORT

RH

1шт.

5

11124431

BOLT,Hex, M20 x 40mm, Cl 10.9, Full Thd

8шт.

6

70927275

WASHER

8шт.

7

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

8

12164121

NUT,M16 x 1.5, Cl 10

4шт.

9

12164427

NUT,M22 x 1.5, Cl 10

2шт.

10

87739073

SUPPORT

LH

1шт.

10

87739075

SUPPORT

RH

1шт.

11

75252041

CLAMP

1шт.

12

73163534

WASHER,23.82mm ID x 88.9mm OD x 7.94mm Thk

2шт.

13

15840531

BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9, Full Thd

4шт.

14

73163867

MOUNTING PARTS

2шт.

15

73163953

PLATE

2шт.

16

73163954

WASHER,23mm ID x 89mm OD x 12.7mm Thk

2шт.

17

15994031

BOLT,Hex, M22 x 1.5 x 130mm, Cl 10.9

2шт.
