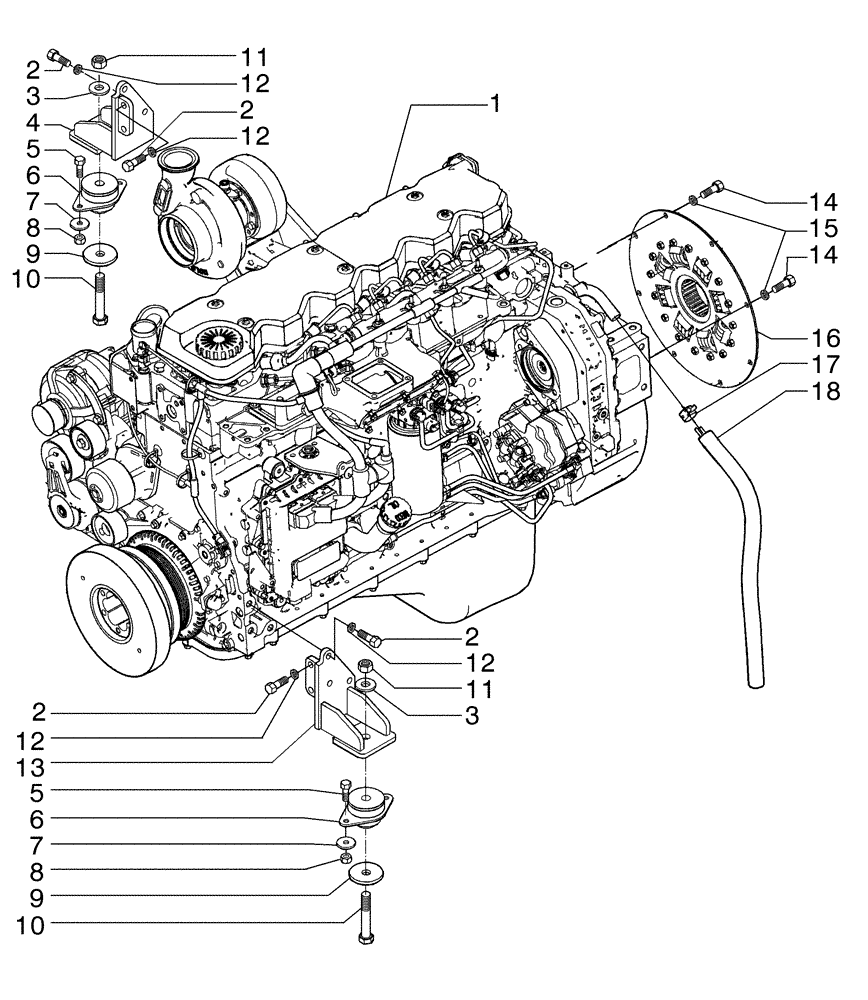

Запчасти Case 845B (02-01[01]) - ENGINE AND SUPPORTS (02) - ENGINE

1

84275612

ENGINE,129kW, 6.7L, 6 Cylinders, W/ Turbocharger

1шт.

For Tork Converter

1шт.

1

84275612ER

REMAN-REPLACEMENT EN

845B MOTOR GRADER TIER 3 (NEW CAB) (12/10-)

1шт.

1

84275612EPAC

CORE-REPLACEMENT ENG

Return Number

1шт.

1

84159800

ENGINE

1шт.

For Direct Drive

1шт.

71104543

ENGINE OVERHAUL KIT

Set of Lower Gaskets

1шт.

71104542

ENGINE OVERHAUL KIT

Set of Upper Gaskets

1шт.

71104536

ENGINE OVERHAUL KIT

Engine Overhauling Kit

1шт.

1

47795682

ENGINE

, Start Serial: HBZN0140KGAF05710

1шт.

2

11112631

BOLT,Hex, M12 x 35mm, Cl 10.9

10шт.

3

70927275

WASHER

2шт.

4

84258384

SUPPORT

RH

1шт.

5

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

6

73163866

ENGINE MOUNT

2шт.

7

12644321

WASHER,10.2mm ID x 35mm OD x 3mm Thk

4шт.

8

11701721

NUT,M10, Cl 10

4шт.

9

70926195

WASHER

2шт.

10

15846437

BOLT,Hex, M16 x 1.5 x 95mm, Cl 10.9

2шт.

11

12164121

NUT,M16 x 1.5, Cl 10

2шт.

12

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

10шт.

13

87621279

SUPPORT

LH

1шт.

14

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

8шт.

For Direct Drive

1шт.

15

70930370

WASHER,0.44" ID x 0.69" OD x 0.11" Thk

8шт.

For Direct Drive

1шт.

16

75249578

DAMPER,352.25mm OD

1шт.

For Direct Drive

1шт.

16

75249578R

REMAN-DAMPER

845B MOTOR GRADER TIER 3 (NEW CAB) (12/10-)

1шт.

16

75249578C

CORE-DAMPER

Return Number

1шт.

17

70925756

CLAMP

1шт.

18

87342638

HOSE,19.05mm ID x 800mm L, SAE 30R2

1шт.
