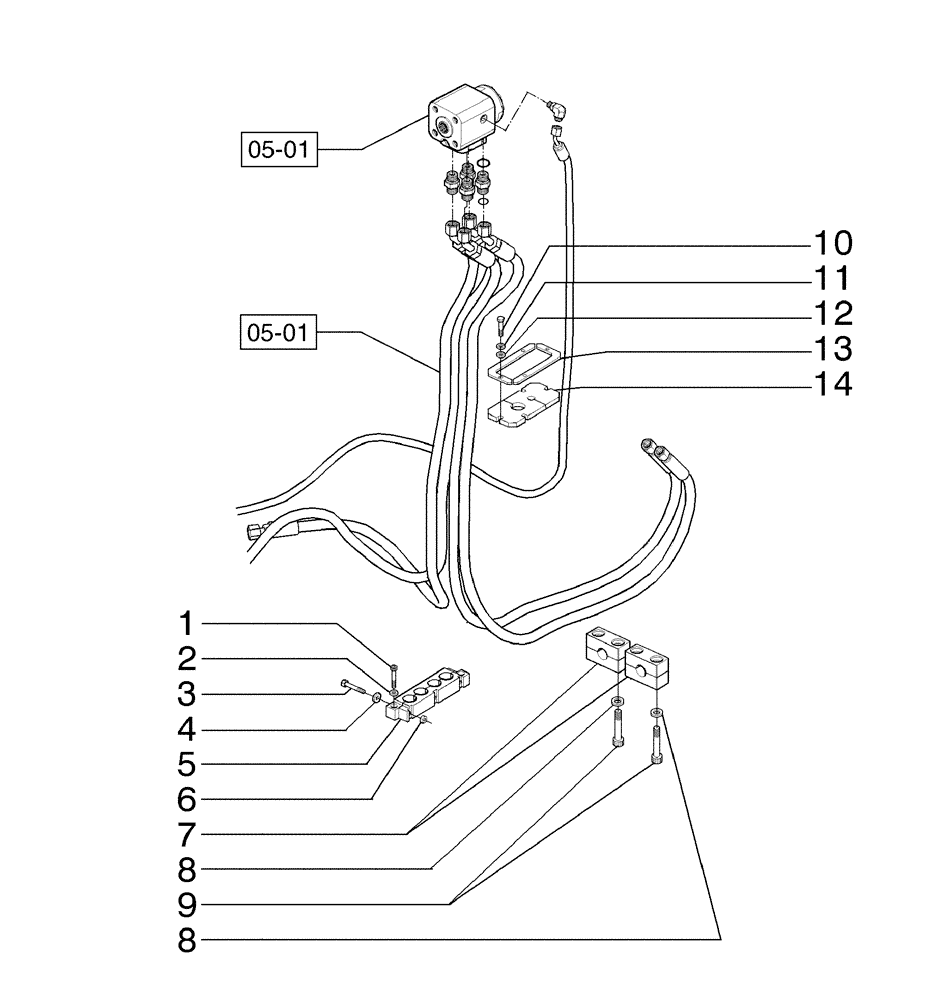

Запчасти Case 845B (05-02[01]) - OPERATORS CONSOLE - CLAMPS (05) - STEERING

1

120162

HEX SOC SCREW,M6 x 35mm, Cl 8.8

2шт.

2

12639701

WASHER,6.15mm ID x 11mm OD x 1mm Thk

2шт.

3

10903231

BOLT,Hex, M6 x 40mm, Cl 10.9

3шт.

4

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

3шт.

5

84178151

CLAMP

1шт.

6

86639234

NUT,Weld, M6

3шт.

7

8501052

SPECIAL CLAMP

2шт.

8

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

9

14420620

SCREW,Hex Soc Hd, M10 x 50, 8.8

2шт.

10

86508617

BOLT,Hex, M6 x 1 x 30mm, Cl 10.9

4шт.

11

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

4шт.

12

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

4шт.

13

84259103

STEEL PLATE

2шт.

14

84259096

RUBBER SEAL

1шт.
