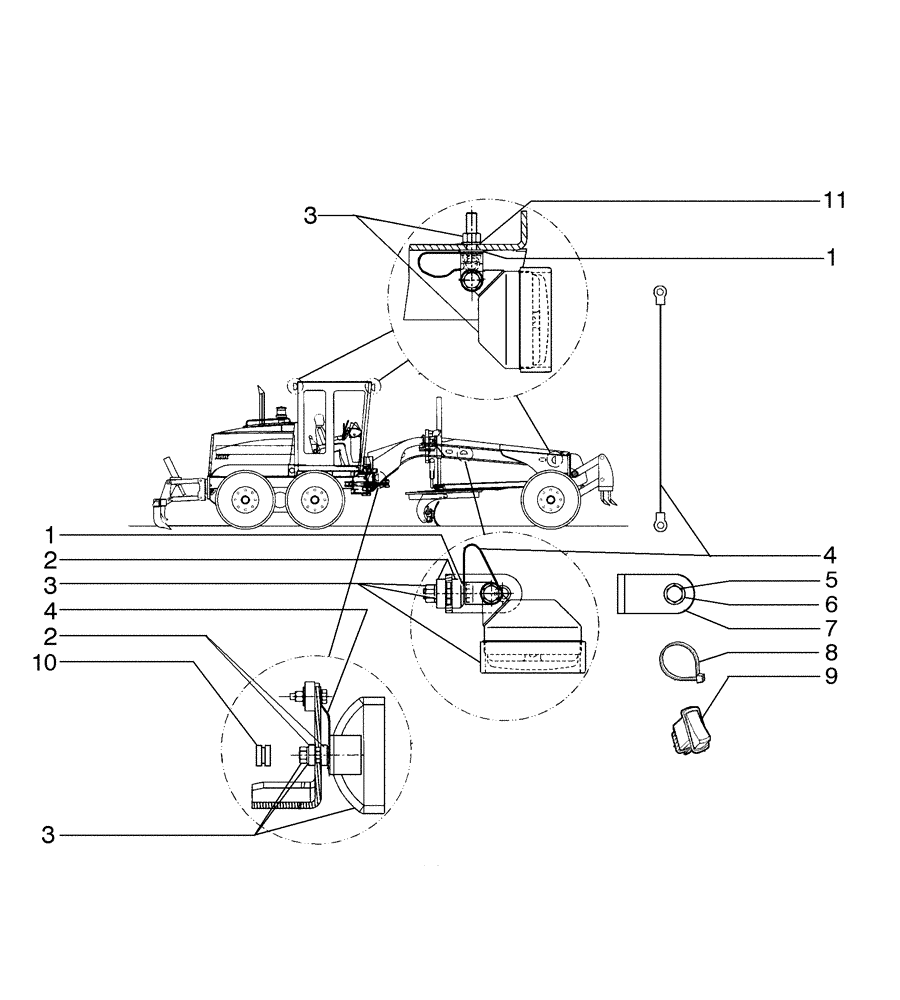

Запчасти Case 845B (04-33[01]) - WORK LIGHTING SYSTEM (04) - ELECTRICAL SYSTEMS

1

70925311

WASHER

BRACKET

10шт.

2

79089658

PAD

BRACKET

10шт.

3

75264235

LIGHT,Halogen, 24V, 70W, Clear

STRAP

10шт.

4

84185549

WIRE HARNESS

SPRING

4шт.

5

11106131

SCREW,Hex, M10 x 22mm, Cl 10.9, Full Thd

DISK/WASHER

2шт.

6

892-11010

LOCK WASHER,M10

HEXAGON NUT

2шт.

7

75248055

SUPPORT

GROOVED DOWEL

2шт.

8

75201642

CLAMP

FILLIST.HEAD SCREW

10шт.

9

84143585

SWITCH

1шт.

10

70921229

HYD CONNECTOR

2шт.

11

75252602

WASHER,10.5mm ID x 28.5mm OD x 1.2mm Thk

8шт.
