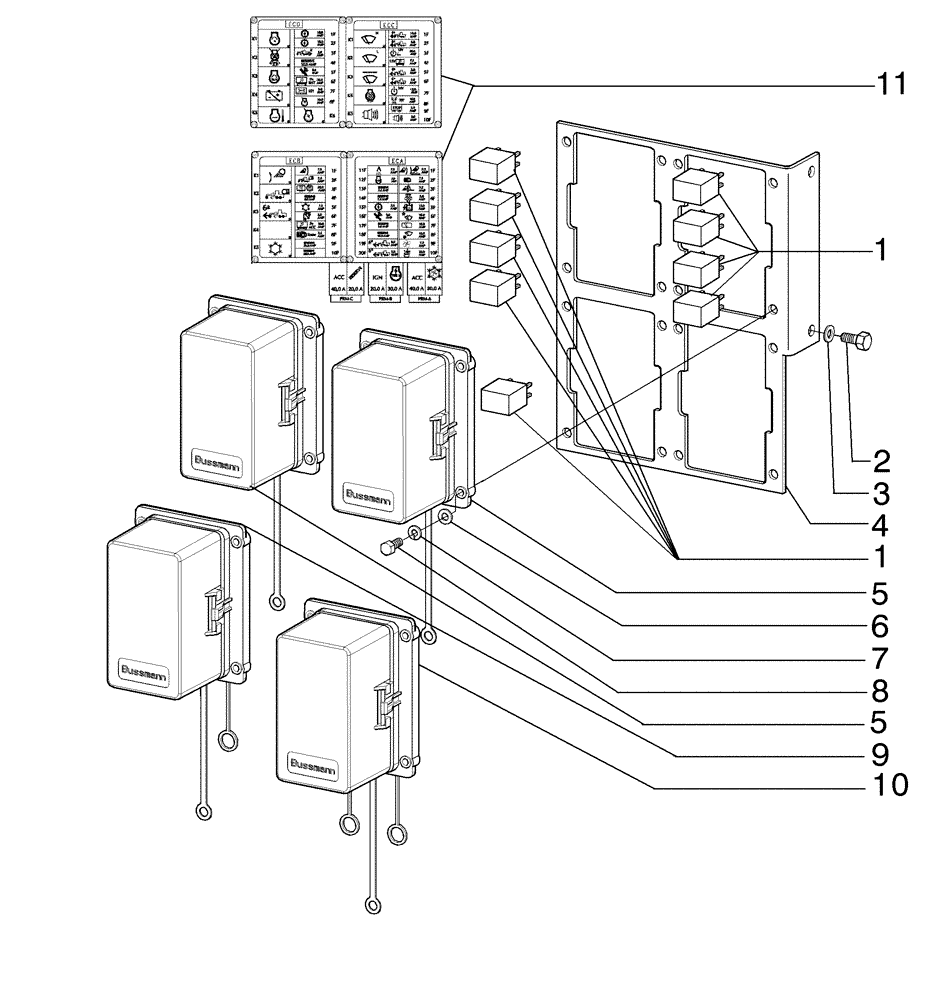

Запчасти Case 885B AWD (04-21[01]) - ELECTRICAL SYSTEM, LATERAL CONSOLE (04) - ELECTRICAL SYSTEMS

1

87312626

RELAY,24V

9шт.

2

10902131

SCREW,Hex, M6 x 14mm, Cl 10.9, Full Thd

2шт.

3

12639701

WASHER,6.15mm ID x 11mm OD x 1mm Thk

2шт.

4

84195359

SUPPORT

1шт.

5

87312843

FUSE BOX

2шт.

6

86625261

WASHER,5.5mm ID x 10mm OD x 1mm Thk

16шт.

7

86509828

LOCK WASHER,M5

16шт.

8

10977731

BOLT,Hex, M5 x 14mm, Cl 10.9, Full Thd

16шт.

9

87315249

FUSE BOX

1шт.

10

87315248

RELAY

1шт.

11

47364261

DECAL

Funk

1шт.

11

47364254

DECAL

ZF

1шт.
