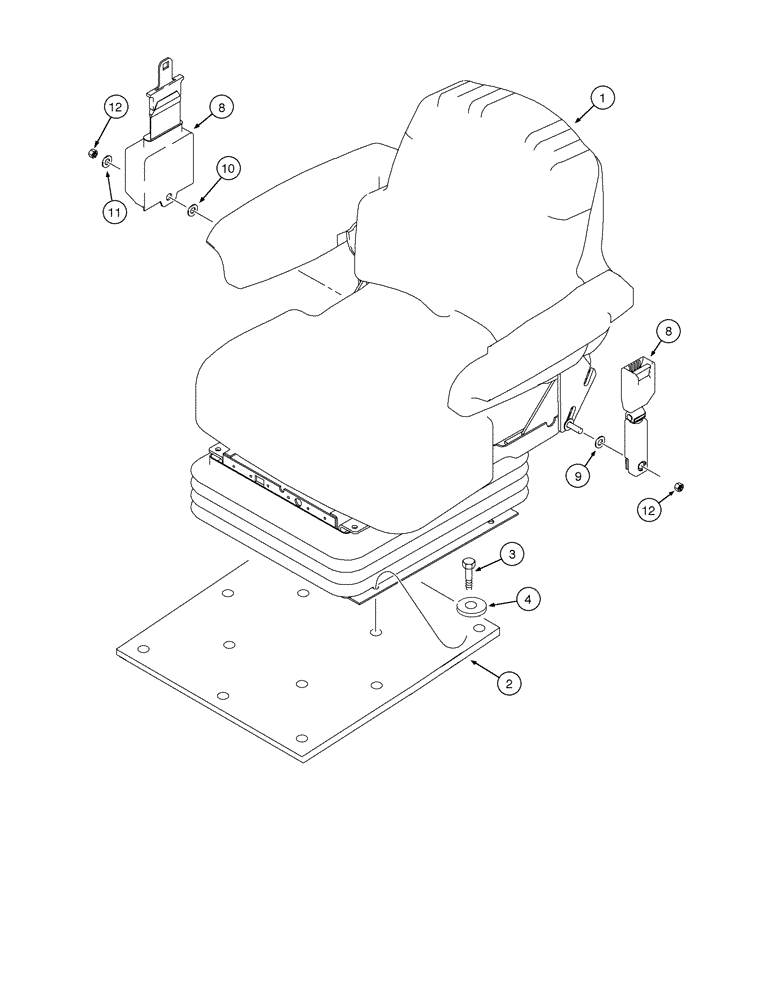

Запчасти Case 885B AWD (09-53[01]) - SEAT - MOUNTING (09) - CHASSIS/ATTACHMENTS

1

399257A1

DRIVER SEAT

Assy Fabric

1шт.

Page 09-112

1шт.

1

399259A1

DRIVER SEAT

Assy Suspension

1шт.

Page 09-120

1шт.

1

399261A1

DRIVER SEAT

Assy Vinyl

1шт.

2

87539163

COVER

Upper

1шт.

3

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

4шт.

4

12642021

WASHER

4шт.

8

249116A1

SAFETY BELT ,50.80 mm W

Includes items 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

1шт.

10

NSS

NOT SOLD SEPARAT

1шт.

11

495-11047

WASHER,7/16", SAE

1шт.

12

231-2447

LOCK NUT,7/16"-14, GB

2шт.

8

84425027

SEAT BELT,50.8mm W x 1219.2mm L

2"

1шт.

8

84425028

SEAT BELT,3 inch Wide Belt

3"

1шт.

9

NSS

NOT SOLD SEPARAT

1шт.

10

NSS

NOT SOLD SEPARAT

1шт.

11

495-11047

WASHER,7/16", SAE

1шт.

12

231-2447

LOCK NUT,7/16"-14, GB

2шт.
