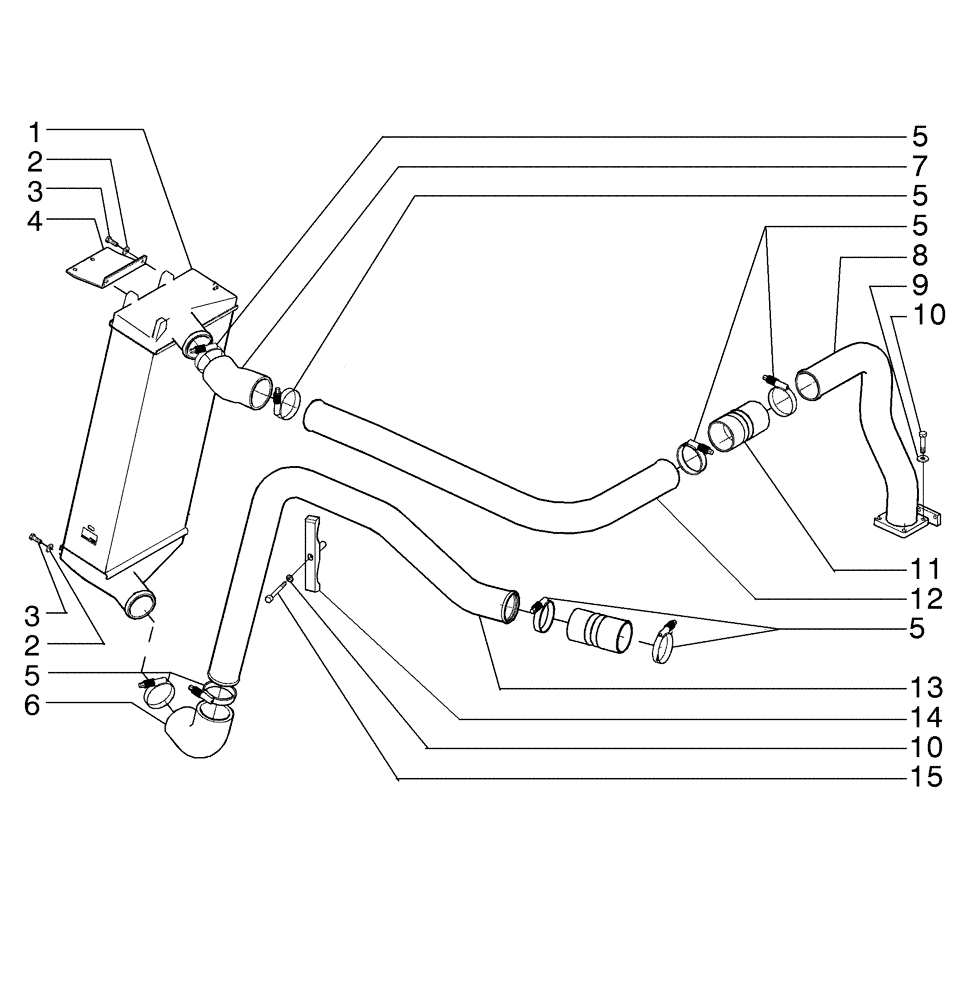

Запчасти Case 885B AWD (02-21[01]) - AFTER COOLER (02) - ENGINE

1

84261960

COOLER

1шт.

2

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

4шт.

3

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

4шт.

4

84287617

SUPPORT

1шт.

5

L115549

CLAMP,69.85mm - 92.08mm

8шт.

6

75324809

HOSE,76.20 mm ID x 125.00 mm

1шт.

7

75324883

HOSE,76.20 mm ID x 148.00 mm

1шт.

8

84189212

HYD TUBE

1шт.

9

10516671

LOCK WASHER

5шт.

10

16043931

SCREW,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

4шт.

11

87340284

INTAKE AIR HOSE,76.20mm ID x 129mm L

2шт.

12

84301474

TUBE

1шт.

13

84297667

RIGID TUBE

1шт.

For 170/200 Class

1шт.

13

84301333

TUBE

1шт.

For 140 Class

1шт.

14

87637945

COLLAR

1шт.

15

14359421

HEX SOC SCREW,M8 x 75mm, Cl 8.8

1шт.
