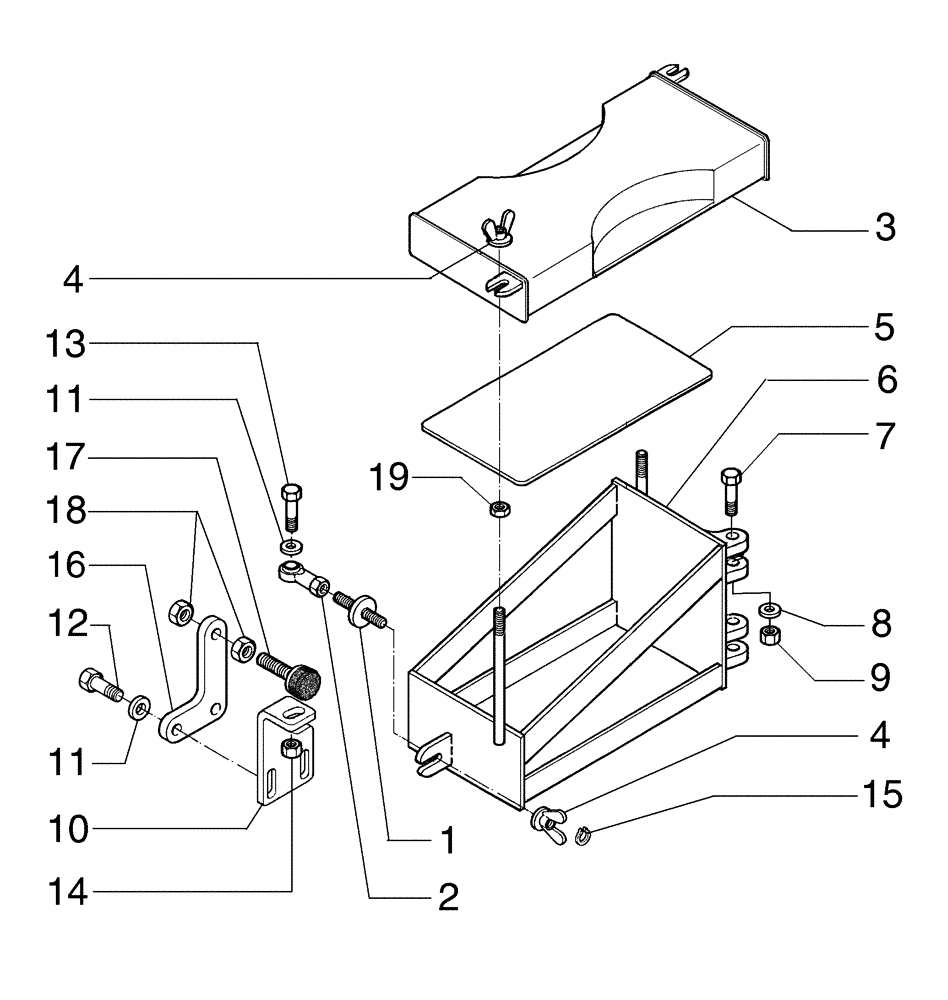

Запчасти Case 885B AWD (09-13[01]) - BATTERY LEFT SUPPORT (09) - CHASSIS/ATTACHMENTS

1

75324262

BOLT

1шт.

2

70617932

TRACK ROD END

1шт.

3

75326442

COVER

1шт.

4

73125821

NUT

3шт.

5

75249924

PLATE

1шт.

6

75324207

SUPPORT

1шт.

7

16043931

SCREW,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

4шт.

8

10520001

WASHER,12.2mm ID x 22mm OD x 3mm Thk

4шт.

9

16100821

NUT,M8, Cl 10

4шт.

10

75324253

SUPPORT

1шт.

11

10519601

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

12

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

2шт.

13

16044131

BOLT,Hex, M8 x 45mm, Cl 10.9

1шт.

14

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

1шт.

15

86507012

SNAP RING,M6, Ext

1шт.

16

87701915

BRACKET

1шт.

17

79037282

PAD

1шт.

18

10791021

THIN NUT,Thin, M10 x 1.25, Cl 05

2шт.

19

70903584

NUT

2шт.
