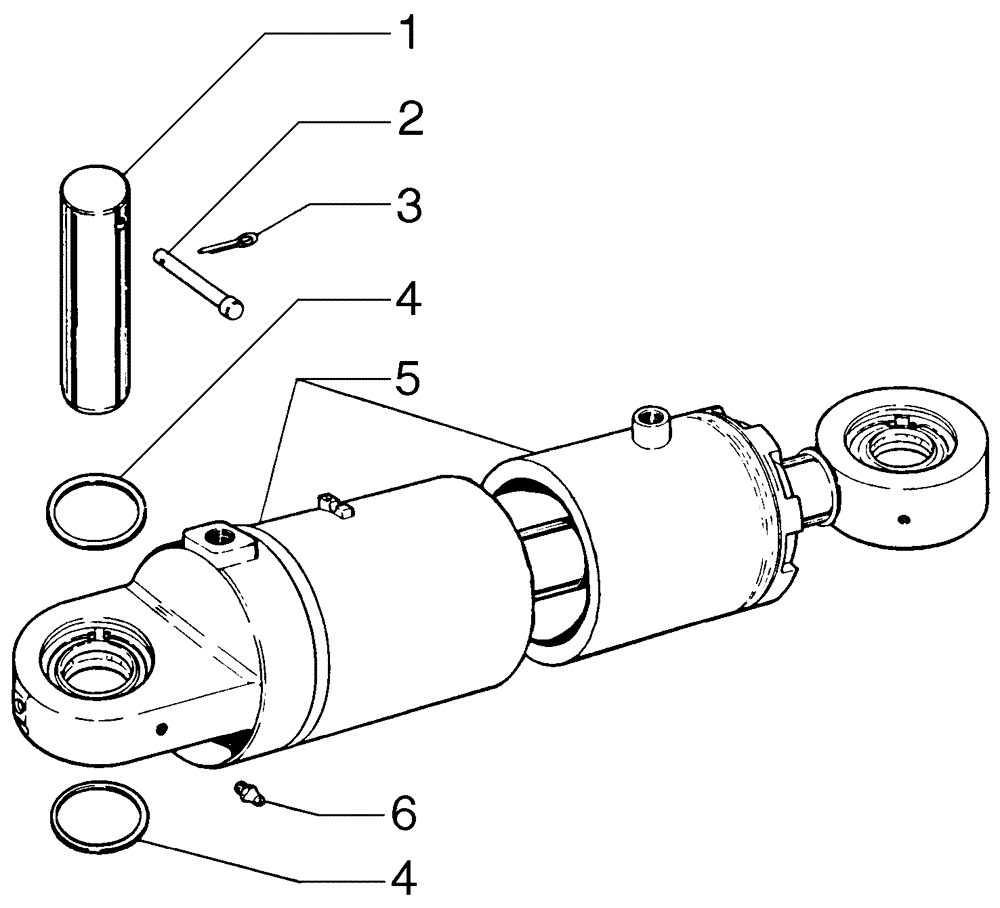

Запчасти Case 885B AWD (09-11[01]) - ARTICULATION CYLINDER (09) - CHASSIS/ATTACHMENTS

1

75213765

PIN,38.08mm OD x 181mm L

4шт.

2

75213766

PIN,10.71mm OD x 88mm L

4шт.

3

70900805

COTTER PIN,1/8" x 3/4"

4шт.

4

75213767

SHIM

1шт.

5

75270372

CYLINDER

RH

1шт.

Page 08-61

1шт.

5

75213774R

REMAN-HYD CYLINDER

865B AWD, 885B AWD, Both MOTOR GRADER TIER 3 (NEW CAB), RH (10/11-), Reman for New PN 75270372

1шт.

5

75213774C

CORE-HYD CYLINDER

Return Number

1шт.

5

75270373

CYLINDER

LH

1шт.

Page 08-61

1шт.

5

75213779R

REMAN-HYD CYLINDER

865B AWD, 885B AWD, Both MOTOR GRADER TIER 3 (NEW CAB), LH (10/11-), Reman for New PN 75270373

1шт.

5

75213779C

CORE-HYD CYLINDER

Return Number

1шт.

6

70914465

LUBE NIPPLE

4шт.
