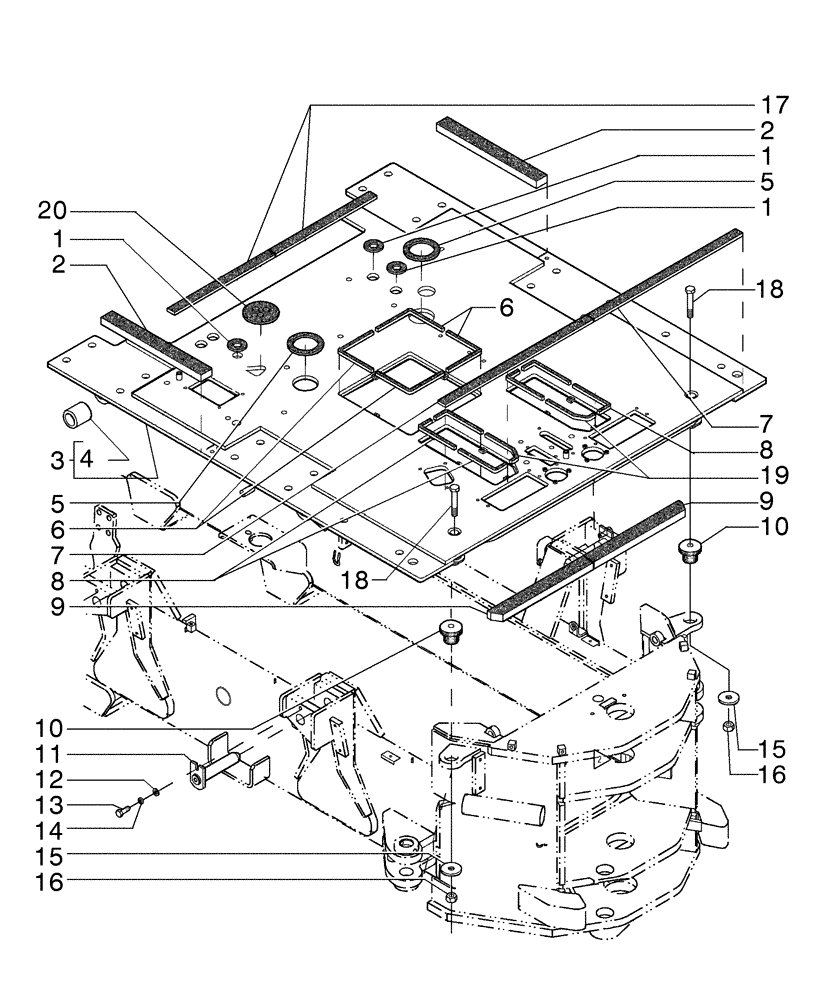

Запчасти Case 885B AWD (09-06[01]) - FLOOR AND INSULATING (09) - CHASSIS/ATTACHMENTS

1

84129150

RING,25mm ID x 55mm OD x 5mm Thk

3шт.

2

84326509

FOAM INSULATION

2шт.

3

84279676

FLOOR

1шт.

4

70684837

BUSHING,31.72mm ID x 63.75mm OD x 85.85mm L

4шт.

5

84129149

INSULATING RING

3шт.

6

75323210

GASKET,10mm W x 320mm L x 10mm Thk

4шт.

7

84326508

FOAM INSULATION

2шт.

8

75323216

GASKET,10mm W x 200mm L x 10mm Thk

6шт.

9

84326510

FOAM INSULATION

2шт.

10

76022229

INSULATOR BLOCK

2шт.

11

75248739

PIN,31.62mm OD x 171mm L

4шт.

12

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

13

11112631

BOLT,Hex, M12 x 35mm, Cl 10.9

4шт.

14

10516871

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

4шт.

15

75254313

WASHER,16.5mm ID x 58mm OD x 4.76mm Thk

2шт.

16

15504021

NUT,M16 x 1.5

2шт.

17

84326486

FOAM INSULATION

2шт.

18

15846437

BOLT,Hex, M16 x 1.5 x 95mm, Cl 10.9

2шт.

19

75323214

GASKET,10mm W x 180mm L x 10mm Thk

2шт.

20

84376558

GASKET

1шт.
