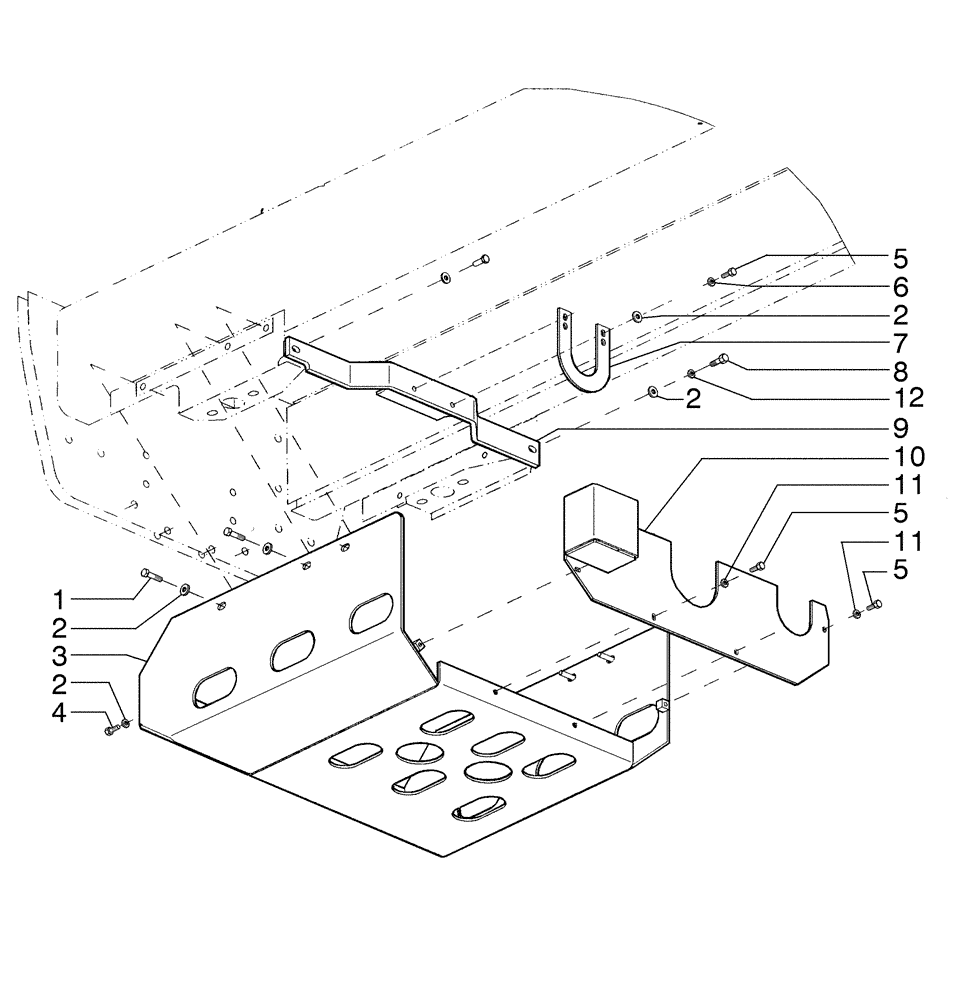

Запчасти Case 885B AWD (09-05[02]) - PROPELLER SHAFTS AND TRANSMISSION GUARD (09) - CHASSIS/ATTACHMENTS

1

337476

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

6шт.

2

12648501

WASHER,12.2mm ID x 28mm OD x 4mm Thk

14шт.

3

84413758

GUARD

1шт.

4

412605

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

4шт.

5

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

6шт.

6

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

2шт.

7

75254126

BRACKET

1шт.

8

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

2шт.

9

75267269

GUSSET

1шт.

10

84130445

PLATE

1шт.

11

14496604

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

12

10517071

LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk

2шт.
