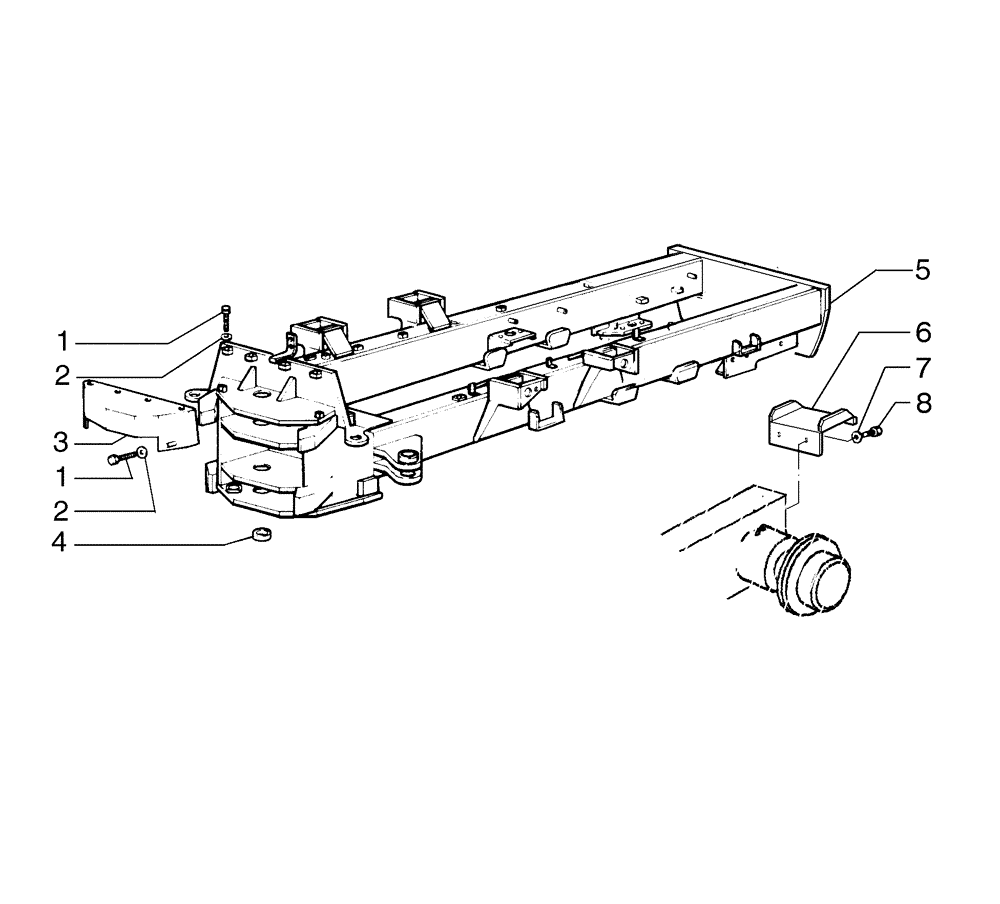

Запчасти Case 885B AWD (09-05[01]) - REAR MAIN FRAME (09) - CHASSIS/ATTACHMENTS

1

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

6шт.

2

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

6шт.

3

75267259

GUARD

1шт.

4

75213759

BUSHING,66.84mm ID x 79.38mm OD x 25.4mm L

3шт.

5

84292628

FRAME

1шт.

For 865 Class

1шт.

5

84292632

FRAME

1шт.

For 885 Class

1шт.

6

75269885

LADDER

2шт.

7

10516871

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

4шт.

8

11106031

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

8шт.
