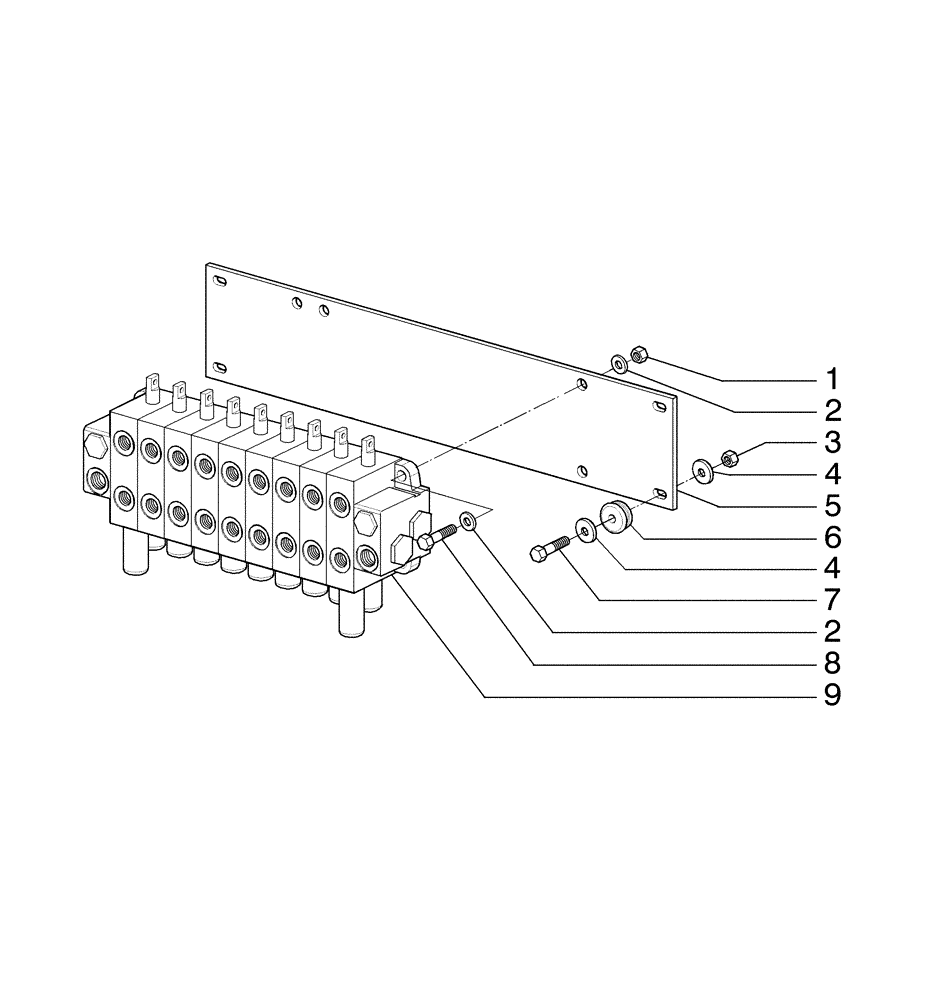

Запчасти Case 885B AWD (08-59[01]) - VALVE ASSY AND SUPPORT (08) - HYDRAULICS

1

70911026

NUT

Outlet

4шт.

2

70630753

WASHER

Moldboard lift

8шт.

3

11701721

NUT,M10, Cl 10

Wheel lean

4шт.

4

12644324

WASHER,10.2mm ID x 35mm OD x 3mm Thk

Articulation

8шт.

5

73162730

PLATE

Circle shift

1шт.

6

75249628

WASHER

Circle turn

4шт.

7

11107031

BOLT,Hex, M10 x 45mm, Cl 10.9

Moldboard shift

4шт.

8

70921565

SCREW

Scarifier/ripper

4шт.

9

84212195

CONTROL VALVE

Inlet

1шт.
