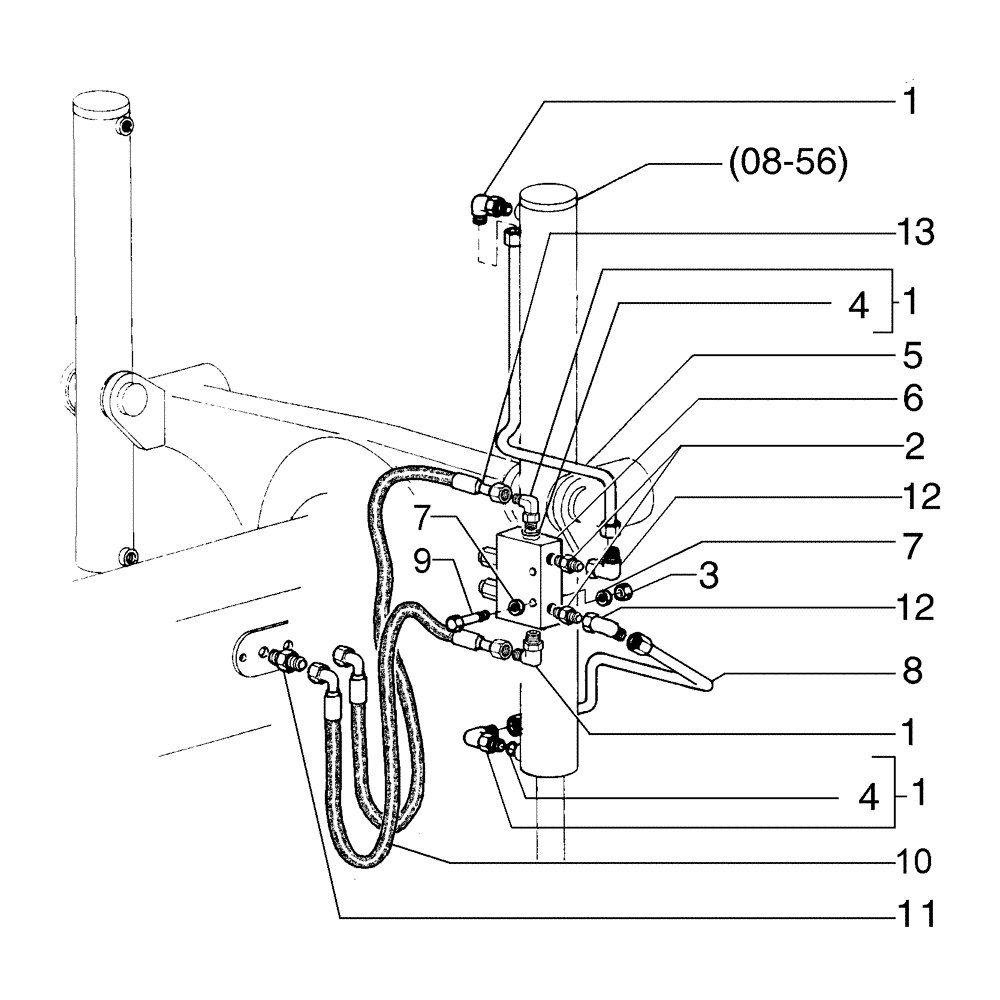

Запчасти Case 885B AWD (08-13[01]) - MOLDBOARD LIFT PIPING (08) - HYDRAULICS

1

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

4шт.

2

70921409

HYD CONNECTOR

2шт.

3

70900367

NUT

2шт.

4

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

10шт.

5

75254144

RIGID TUBE

1шт.

5

75254140

RIGID TUBE

1шт.

6

75325021

VALVE

2шт.

Page 08-37

1шт.

7

70630753

WASHER

4шт.

8

75254146

RIGID TUBE

1шт.

8

75254142

RIGID TUBE

1шт.

9

11107331

SCREW,Hex, M10 x 55mm, Cl 10.9

4шт.

10

75325864

HOSE,12.7mm ID x 1139mm L, SAE 100R2

2шт.

11

70927261

HYD CONNECTOR

4шт.

12

70921279

ELBOW

4шт.

13

75325863

FLEXIBLE HOSE

2шт.
