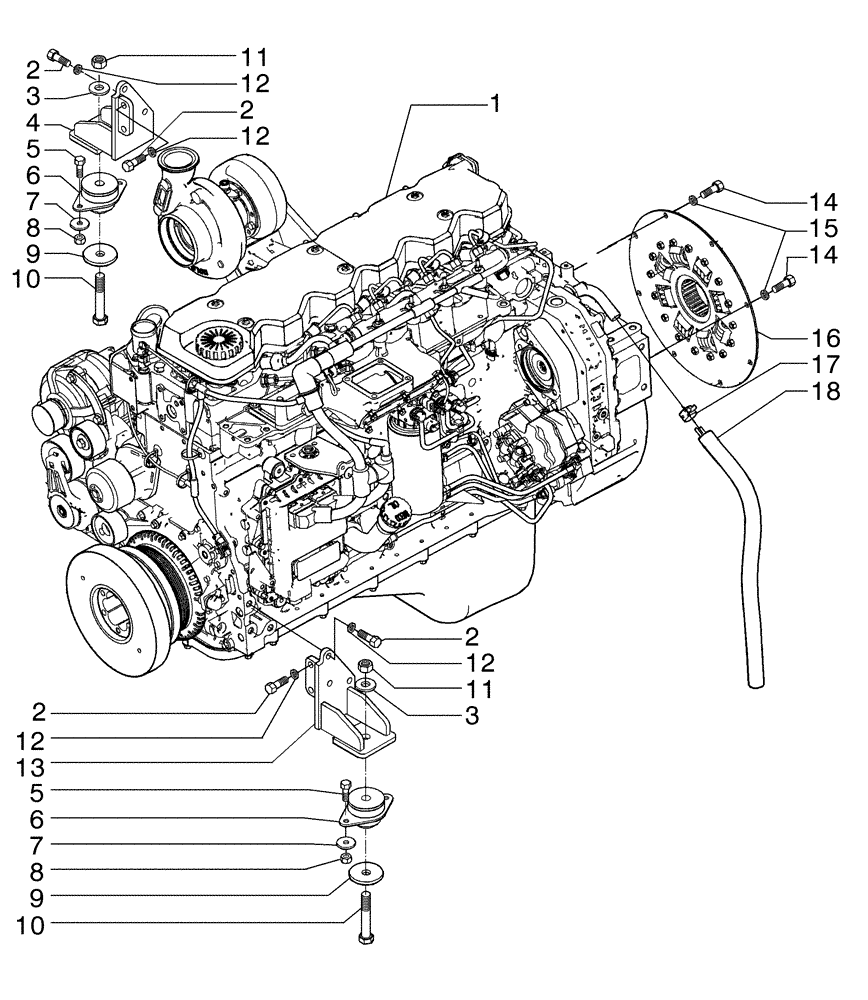

Запчасти Case 885B AWD (02-03[01]) - ENGINE AND SUPPORTS (02) - ENGINE

1

84410687

ENGINE

1шт.

1

47795691

ENGINE

, Start Serial: HBZN0140KGAF05710

1шт.

2

11112631

BOLT,Hex, M12 x 35mm, Cl 10.9

10шт.

3

70927275

WASHER

2шт.

4

84276084

SUPPORT

RH

1шт.

5

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

6

73163866

ENGINE MOUNT

2шт.

7

12644324

WASHER,10.2mm ID x 35mm OD x 3mm Thk

4шт.

8

11701721

NUT,M10, Cl 10

4шт.

9

70926195

WASHER

2шт.

10

15846437

BOLT,Hex, M16 x 1.5 x 95mm, Cl 10.9

2шт.

11

12164121

NUT,M16 x 1.5, Cl 10

2шт.

12

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

10шт.

13

75327705

SUPPORT

LH

1шт.

14

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

8шт.

15

70930370

WASHER,0.44" ID x 0.69" OD x 0.11" Thk

8шт.

16

75249578

DAMPER,352.25mm OD

1шт.

16

75249578R

REMAN-DAMPER

885B AWD MOTOR GRADER TIER 3 (NEW CAB) (10/11-)

1шт.

16

75249578C

CORE-DAMPER

Return Number

1шт.

17

1954736C1

HOSE CLAMP,#24

1шт.

18

87342638

HOSE,19.05mm ID x 800mm L, SAE 30R2

1шт.
