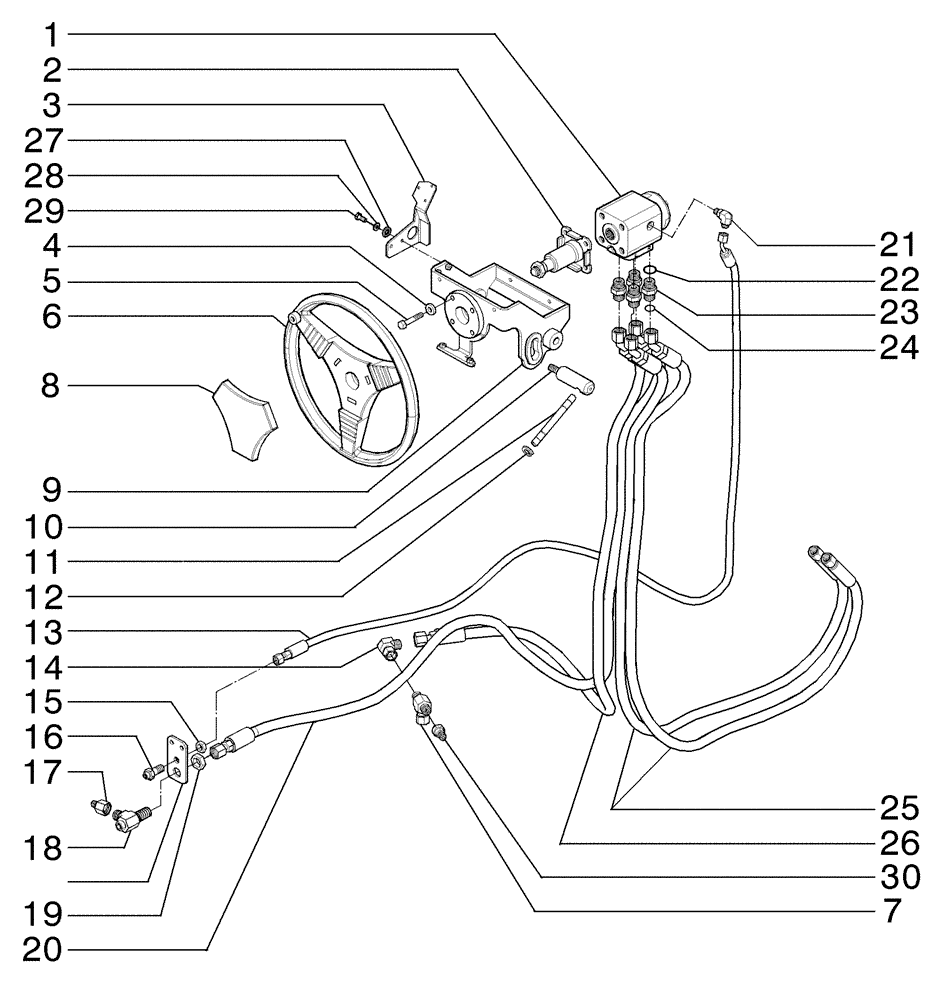

Запчасти Case 885B AWD (05-01[01]) - OPERATORS CONSOLE - STEERING HYDRAULIC SYSTEM (05) - STEERING

1

75257538

HYDRAULIC VALVE

1шт.

2

75280694

STEERING COLUMN

1шт.

3

84192468

SUPPORT

1шт.

4

70677006

WASHER,10.31mm ID x 22.23mm OD x 4.76mm Thk

4шт.

5

70920995

SCREW

4шт.

6

87357502

WHEEL (STEERING)

1шт.

7

701-434

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

1шт.

8

75254509

COVER

1шт.

9

84191864

SUPPORT

1шт.

10

84192561

AXLE

1шт.

11

73121497

SHAFT

1шт.

12

70935211

RING

2шт.

13

84200170

HOSE ASSY.

1шт.

14

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

1шт.

15

218-1254

LOCK NUT,Blkhd, 9/16"-18

1шт.

16

201-108

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS

1шт.

17

87634022

HYD CONNECTOR

1шт.

18

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

1шт.

19

201-903

TUBE NUT,Blkhd, 13/16"-16

1шт.

20

84194124

HOSE ASSY.

1шт.

21

201-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

1шт.

22

70935176

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

4шт.

23

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

4шт.

24

70923841

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

25

84245402

HOSE ASSY.

2шт.

26

84200769

HOSE ASSY.

1шт.

27

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

2шт.

28

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

2шт.

29

10902331

SCREW,Hex, M6 x 18mm, Cl 10.9, Full Thd

2шт.

30

201-145

REDUCER,9/16"-18 Male x 11/16"-16 Fem, ORFS

1шт.
