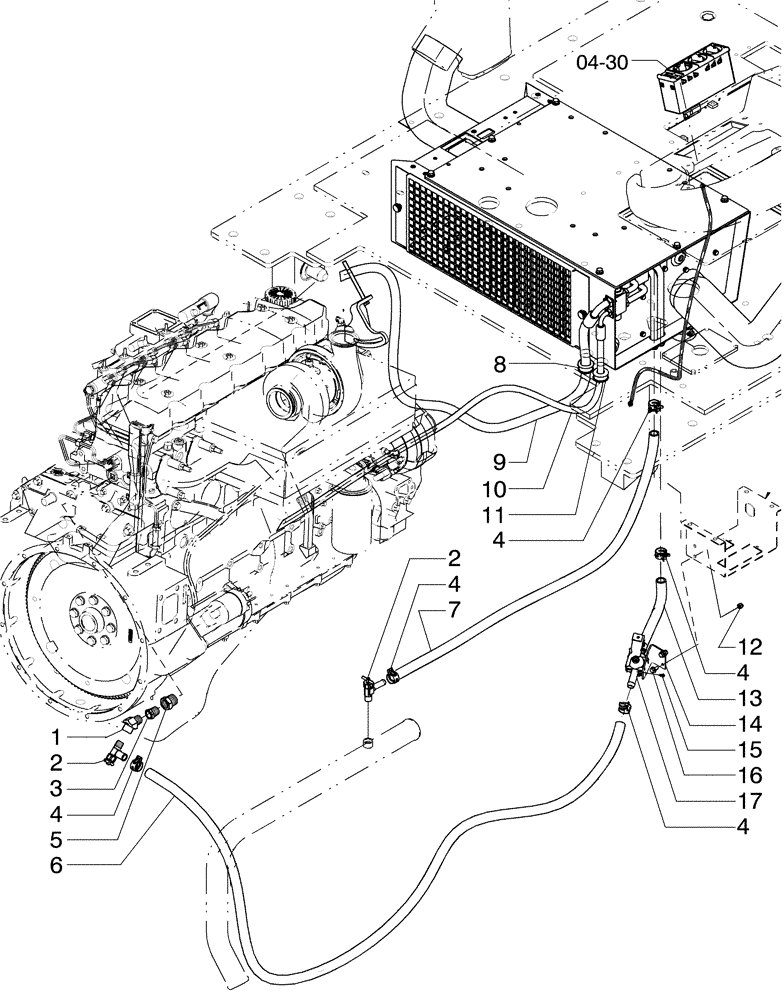

Запчасти Case 885B (09-51[02]) - CAB, AIR CONDITIONER SYSTEM (09) - CHASSIS/ATTACHMENTS

1

70910149

ELBOW

1шт.

2

301803R1

SHUT-OFF VALVE

2шт.

3

70901835

BUSHING

1шт.

4

1954736C1

HOSE CLAMP,#24

6шт.

5

70901828

BUSHING

1шт.

6

R55242

HEATER HOSE,15.50 mm ID x 2550.00 mm

1шт.

7

87574040

HEATER HOSE,16.00 mm ID x 2400.00 mm

1шт.

7

47710281

HOSE

, Start Year: 01-MAR-15

1шт.

8

75321550

INSULATOR

1шт.

9

84304777

HOSE ASSY.

1шт.

10

84304776

HOSE ASSY.

1шт.

11

75321576

INSULATOR

1шт.

12

393392

LOCK NUT,Prev Torque, M6 x 1, Cl 8

2шт.

13

75320965

HEATER HOSE,16.00 mm ID x 410.00 mm

1шт.

13

84374771

HEATER HOSE

, Start Year: 01-MAR-15

1шт.

14

84323802

SUPPORT

1шт.

15

760-14395

SELF-TAP SCREW,Pan Hd, M4.2 x 9.5

2шт.

16

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

2шт.

17

84327179

HEATER VALVE

1шт.
