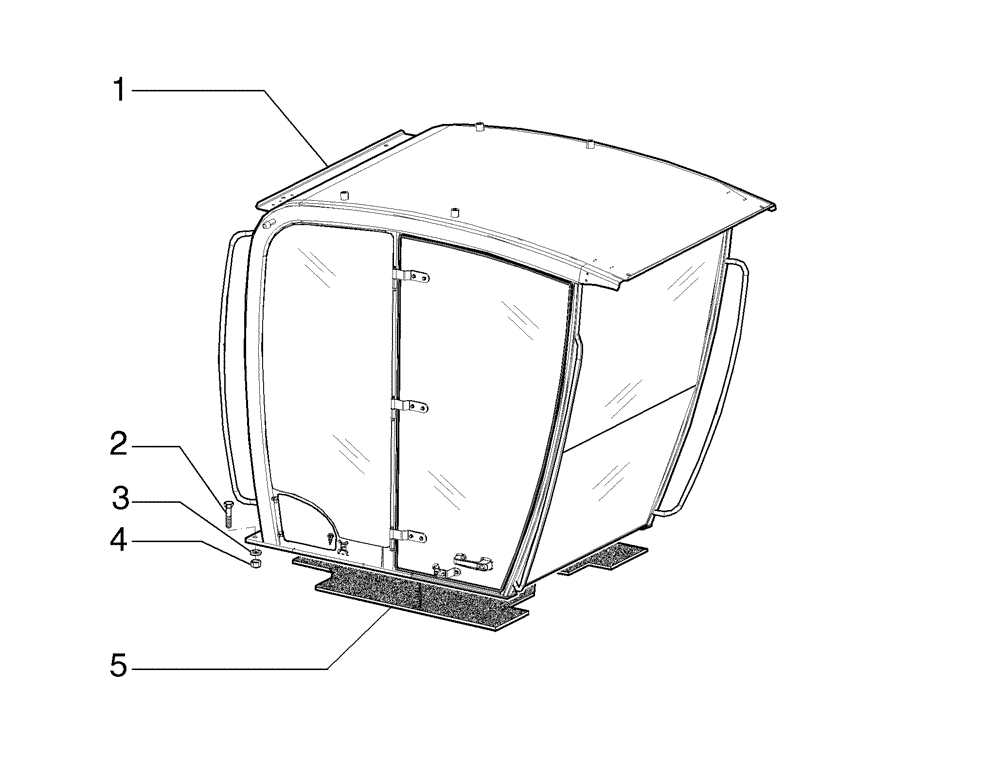

Запчасти Case 885B (09-36[01]) - CAB (09) - CHASSIS/ATTACHMENTS

1

84326498

CAB

High Profile

1шт.

1

84326500

CAB

Low Profile

1шт.

1

84326504

CAB

High Profile w/ Window

1шт.

1

84326506

CAB

Low Profile w/ Window

1шт.

1

84326502

CAB

Open

1шт.

1

47709778

CAB

Low Profile - Only NA since Jan 15

1шт.

1

47709802

CAB

Low Profile w/ Window - Only NA since Jan15

1шт.

2

15224031

BOLT,Hex, M20 x 65mm, Cl 10.9, Full Thd

16шт.

2

11125331

BOLT,Hex, M20 x 80mm, Cl 10.9

4шт.

3

79032222

WASHER,21mm ID x 40mm OD x 8mm Thk

14шт.

3

14497131

WASHER,21mm ID x 37mm OD x 3mm Thk

4шт.

4

84010564

NUT,Prev Torque, M20 x 2.5 x 23mm, Cl 10

18шт.

5

84318943

FLOOR MAT

1шт.
