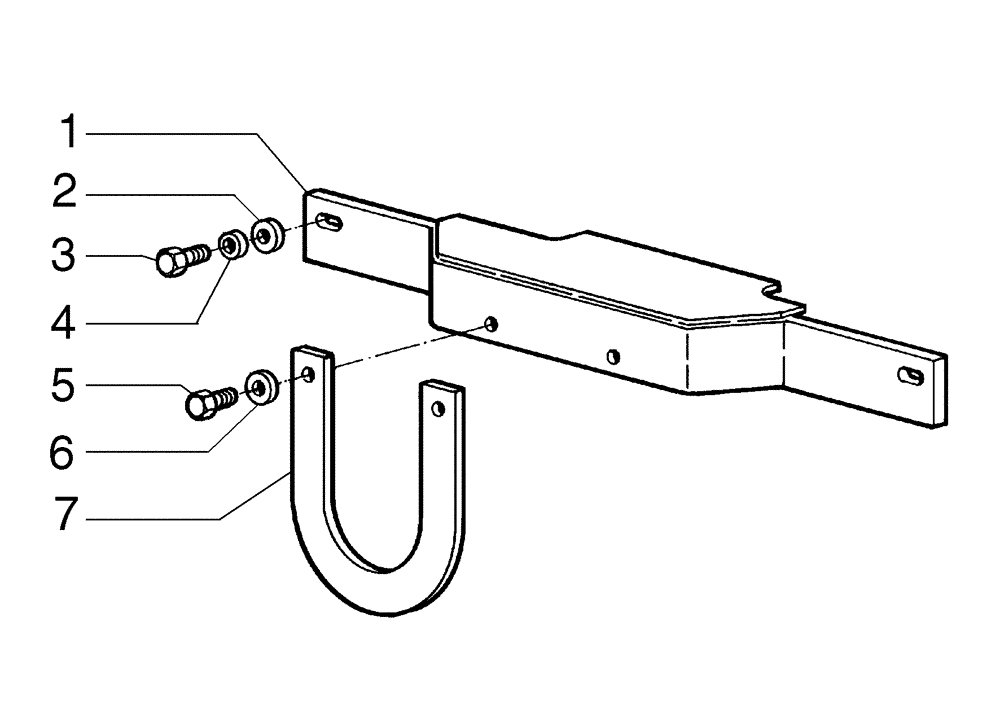

Запчасти Case 885B (09-05[03]) - PROPELLER SHAFTS GUARD - (DIRECT DRIVE) (09) - CHASSIS/ATTACHMENTS

1

75267269

GUSSET

1шт.

2

12648501

WASHER,12.2mm ID x 28mm OD x 4mm Thk

2шт.

3

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

2шт.

4

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

2шт.

5

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

2шт.

6

14496604

WASHER,10.5mm ID x 21mm OD x 2mm Thk

6шт.

7

75254126

BRACKET

1шт.
