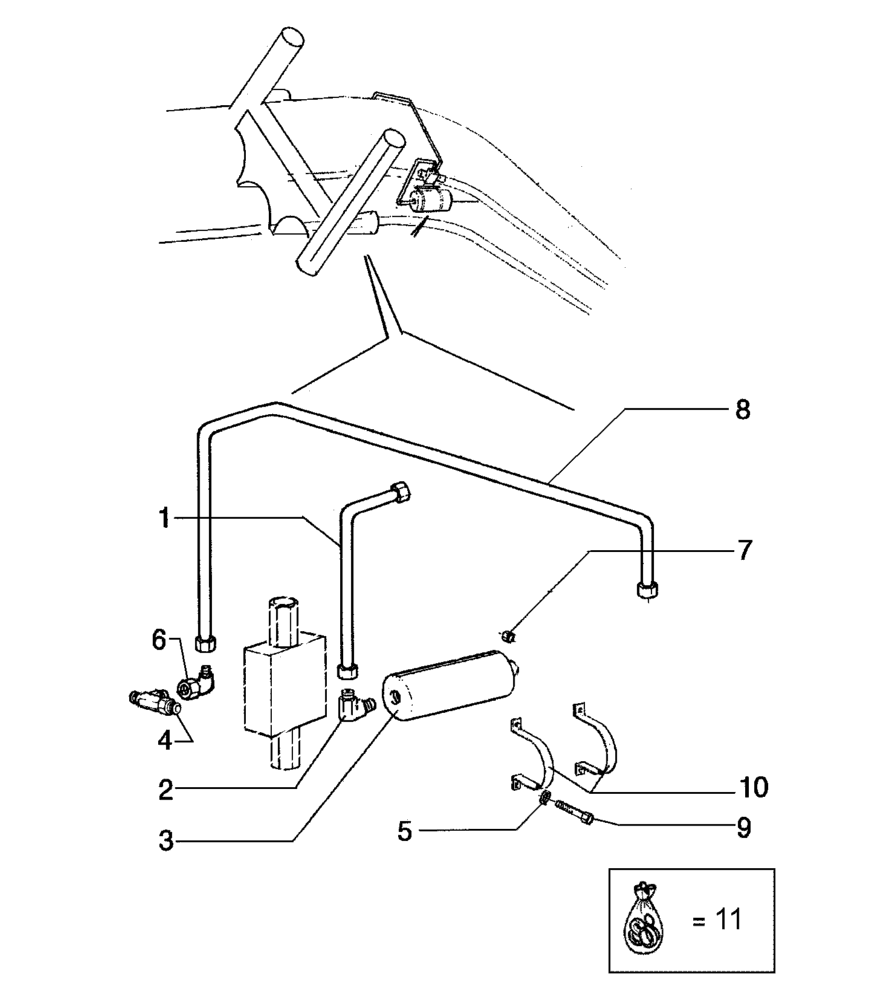

Запчасти Case 885B (08-26[01]) - MOLDBOARD SHIFT HYDRAULIC ACCUMULATOR (08) - HYDRAULICS

1

75255616

RIGID TUBE,9.7 mm ID, 12.7 mm OD, 182, 87 mm Length

1шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

1шт.

3

73160860

ACCUMULATOR

1шт.

4

70922792

3 WAY CONNECTION

2шт.

5

10516871

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

6шт.

6

70921279

ELBOW

2шт.

7

15500121

NUT

6шт.

8

75255614

THERMOMETER

1шт.

9

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.

10

73160848

CLAMP

2шт.

11

773043012

KIT

Included Itens page 08-27

1шт.
